Change Device Settings

Use the Change Device Settings option to open the Device Settings dialog box and display the following information for each device: location, model, GV host, IP address, name, subnet mask, gateway, mail server, mail domain, telnet port, web port, admin password, user password, daylight savings, and time zone.

The Device Settings page scrolls horizontally to display all of the information listed above.

Change Device Settings

To open the Device Settings dialog box:

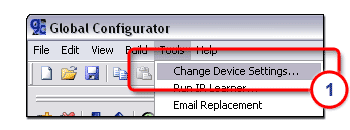

  1. From the Tools menu, select Change Device Settings.

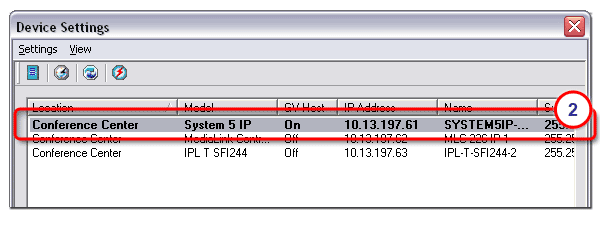

  2. Select the desired device.

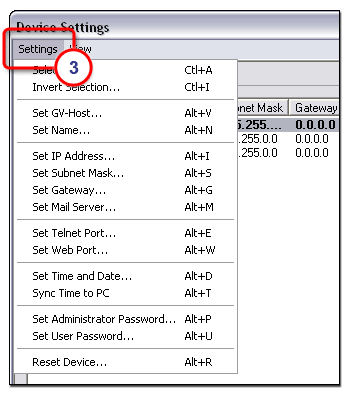

  1. Use the Settings drop-down list to make any desired configuration changes to the selected device.

Device Settings toolbar

Device Settings toolbar icons (4) include:

Note:   Each of these options is also available in the Settings drop-down list.

Set the GV-host on or off.

Set the time and date.

Synchronize the time on the IP Link device with the time on the PC.

Reset device.
