IPI Front Panel Tab

The IPI Front Panel tab is available when an IPI 201 or IPI 204 device is selected in the IP Link® Tree window.

This tab is used to:

  • Enter the IP address of the intercom device to which this device will connect to when the "PUSH TO TALK" button is pressed.

  • Create a button name for each "PUSH TO TALK" button.

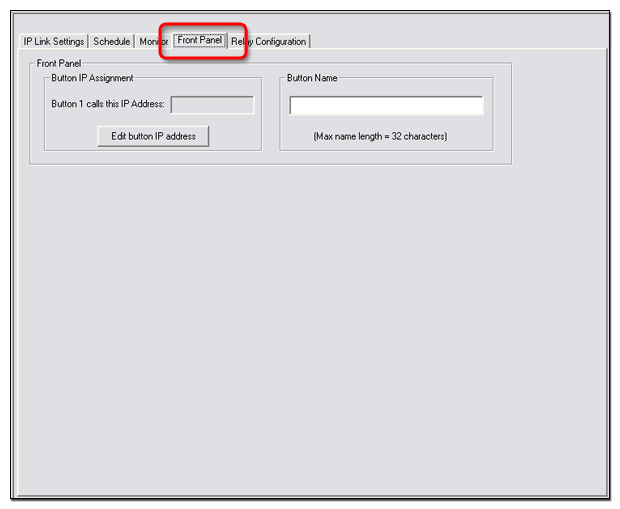

The IPI 201 has one button to configure.

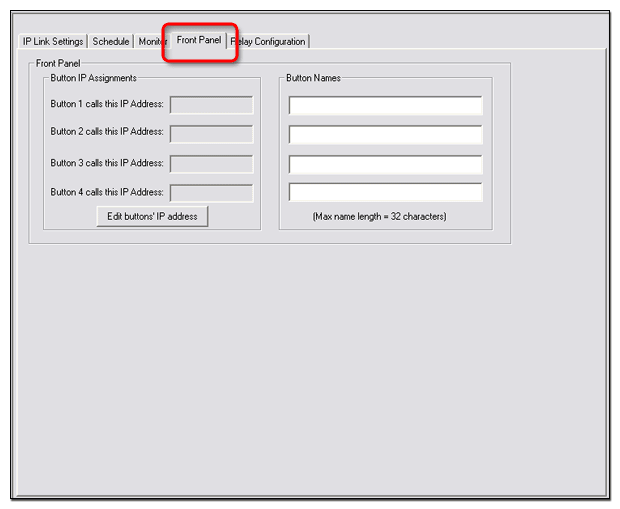

The  IPI 204 has four buttons to configure.

To configure an IPI 201 or IPI 204 button:

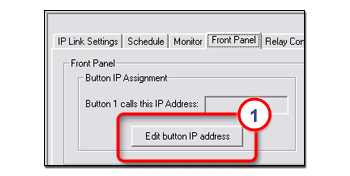

  1. Click the Edit Button IP address button.

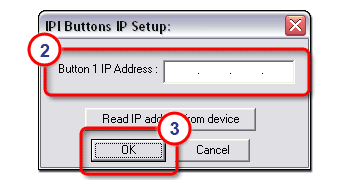

The IPI Button's IP Setup dialog box opens.

  1. Enter the IP address of the corresponding intercom device in the Button 1 IP Address field.

 - or -

Click the Read IPs From Device button to display a listing of available IP addresses.

  1. Click OK.

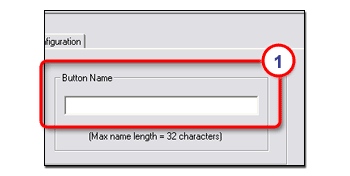

To create a button name:

  1. Enter the desired button name in the Button Name field for each available button.
