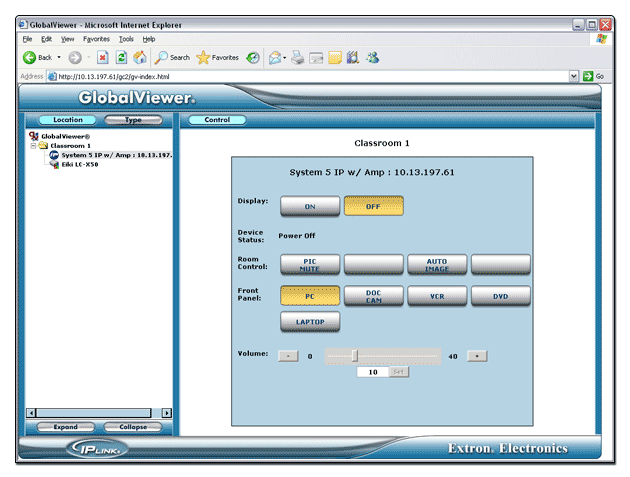

What is GlobalViewer?GlobalViewer is a graphical user interface that is generated by Global Configurator. When a GC file is built and uploaded to a device on your A/V network designated in GC as a GlobalViewer host device, you can launch the GlobalViewer graphical user interface by opening an Internet browser on a local PC and entering the host device's IP address in the browser's Address field. Once the GlobalViewer interface is launched, you can monitor and control all of the devices on your A/V network from the GlobalViewer host device. A sample GlobalViewer screen is shown below. |
|

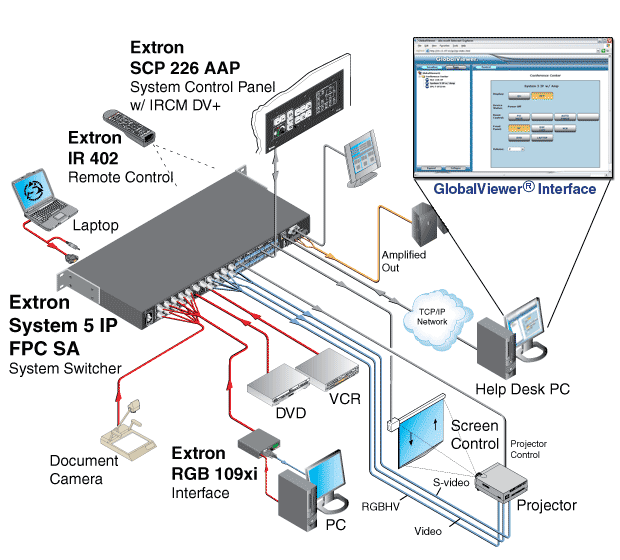

In the example network diagram below, the Extron System 5 IP is designated as the GlobalViewer host device. The System 5 IP, SCP 226 AAP Control Panel, IR 402 Remote Control, and all of the A/V input/output devices (document camera, DVD, VCR, video projector, screen, etc.) can be configured using Global Configurator. Once the configuration is complete and uploaded to the GlobalViewer host device, you can then launch the GlobalViewer interface from the host device (System 5 IP) to monitor and control any of the devices on this A/V network. |
