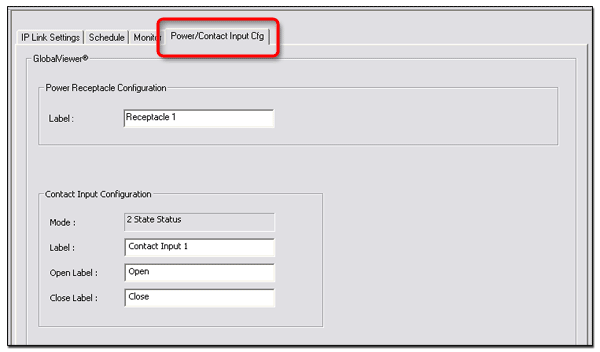

Power / Contact Input Configuration Tab

The Power / Contact Input Config tab is available when an IPL T PC1 or IPL T PC1i device is selected in the
IP Link® Tree window.

This tab is used to:

• Create a unique power receptacle label that is displayed in GlobalViewer.

• Create unique label names for the device's contact input function that are displayed in GlobalViewer.

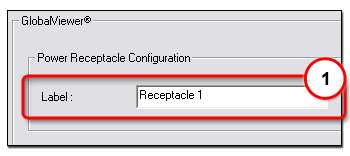

To create a power receptacle label:

1. Enter a unique name in the Label field.

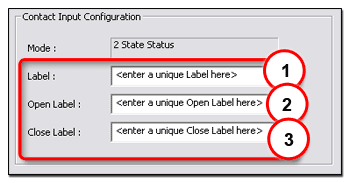

To create the contact input labels:

1. Enter a unique name in the Label field.

2. Enter a unique name in the Open Label field.

3. Enter a unique name in the Close Label field.
