Rebuild Driver List

Device drivers exist in two places: on the Extron Web site,  and on the local PC (after they have been downloaded from the Extron Web site).  There is also a catalog file within Global Configurator that references the device drivers on the local PC.

If you select a device on a Control port in the IP Link® Tree window,  and then select the Serial Configuration tab, the list of available device drivers is displayed and can be sorted by device type, manufacturer, and version.

If you download a new device driver to your local PC, it will not appear in the Serial Configuration tab listing until you restart the GC application.

If you want to use the new driver without restarting the GC application, you can do so by selecting the Rebuild Driver List option.

You must close the existing project (leave GC running) before the Rebuild Driver List option is available in the Edit menu.

Rebuild Driver List

To rebuild the driver list:

  1. Download a new device driver(s) from www.extron.com.

  2. Launch Global Configurator, but do not  open an existing GC project file.

- or -

If GC is currently running with a project file open, click the New icon to close the existing project file and open a new, empty, project file.

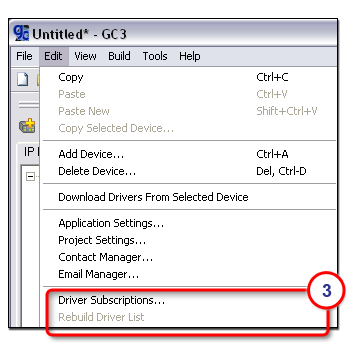

  1. From the Edit menu, select Rebuild Driver List.

  2. Re-open the original GC project file.

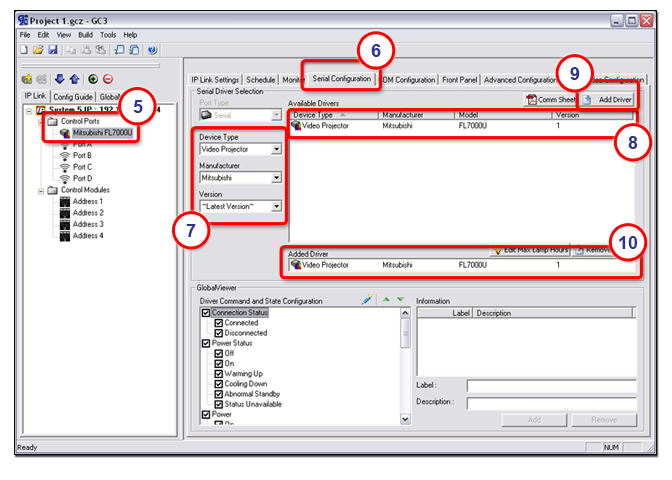

  1. Select the desired device on the desired Control port (see below) in the IP Link Tree window.

  2. Select the Serial Configuration tab.

  3. Sort by device type, manufacturer, and/or version to locate the new device driver in the listing.

  4. Select the desired device driver.

  5. Click the Add Driver button.

  6. The selected device driver is moved to the Added Driver field and the device name in the IP Link Tree window is updated to reflect the device driver now in use on the selected port (5).
