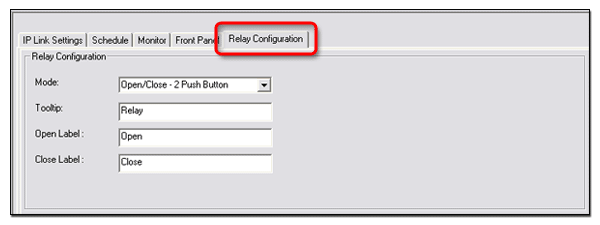

Relay Configuration Tab

The Relay Configuration tab is available when an IPI 201 or IPI 204 device is selected in the IP Link® Tree window.

This tab is used to:

• Select the relay mode.  Options are:

• Open/Close - 2 Push Button

• Toggle - 1 Push Button

• Pulse - 1 Push Button

• Create the relay tooltip to be displayed in the GlobalViewer® interface

• Create the relay open label to be displayed in the GlobalViewer interface

• Create the relay close label to be displayed in the GlobalViewer interface

To configure an IPI 201 or IPI 204 relay:

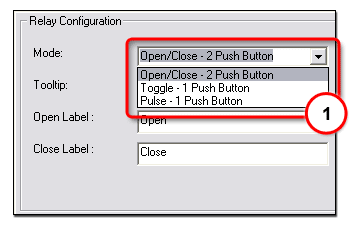

1. Select the desired mode.

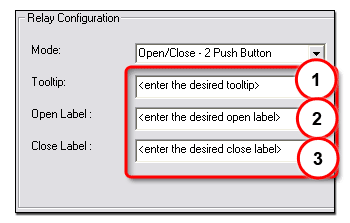

If mode selection is Open/Close - 2 Push Button, then:

1. Enter a tooltip.

2. Enter an open label.

3. Enter a close label.

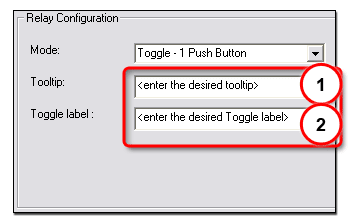

If mode selection is Toggle - 1 Push Button, then:

1. Enter a tooltip.

2. Enter a toggle label.

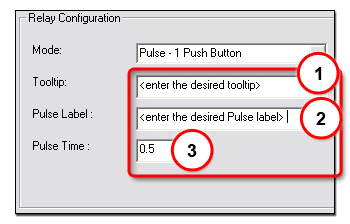

If mode selection is Pulse - 1 Push Button, then:

1. Enter a tooltip.

2. Enter a pulse label.

3. Enter a pulse time
   (0.1 to 1310.7 seconds).
