Set Web Help Link

The Set Web Help Link function allows you to add a Help button at the top of your GlobalViewer® page and assign to it a link to any Web page.

To set a Web help link:

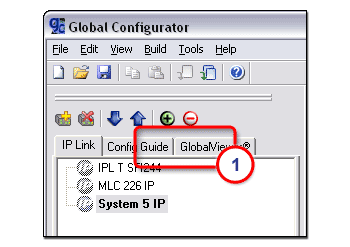

  1. Click the GlobalViewer®  tab in the IP Link® Tree window.

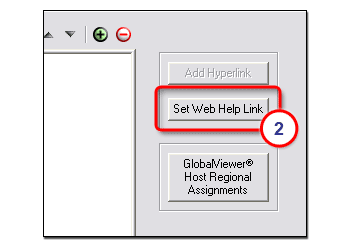

  1. Click Set Web Help Link in the right window pane.

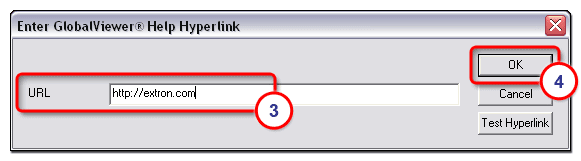

The Enter GlobalViewer® Help Hyperlink dialog box opens (see below).

  1. Enter the desired Web site URL in the URL field.

Example: "http://extron.com"

  1. Click OK.

  2. Perform a Build Changed Configurations.

To view and test the new Help link in the GlobalViewer page:

  1. Select a GlobalViewer host device in the IP Link Tree window.

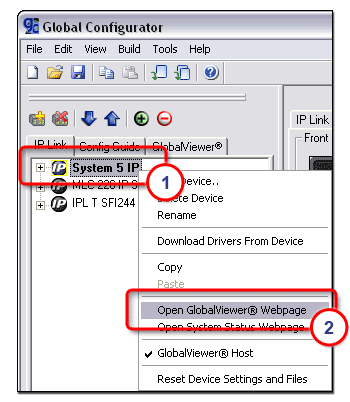

  2. Right-click on the host device name and click Open GlobalViewer®  Webpage.

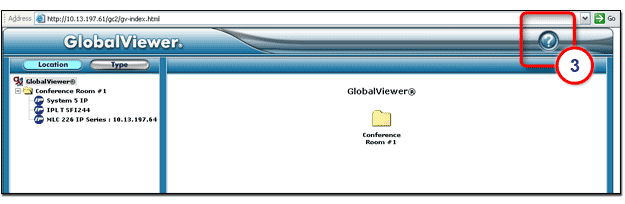

The GlobalViewer® Web page opens (see below).

  1. Click the Help icon to launch the Web page you have identified as your Help page.
