View Serial Driver Comm. Sheet

Use the View Serial Driver Comm. Sheet option to open the Driver Catalog List dialog box and search for a specific device driver by:

• Device Type

• Manufacturer

• Version

To open the Driver Catalog List dialog box:

1. From the Edit menu, select View Serial Driver Comm. Sheet.

The Driver Catalog List dialog box opens.

2. Select a Device Driver.

3. Click the View PDF button.

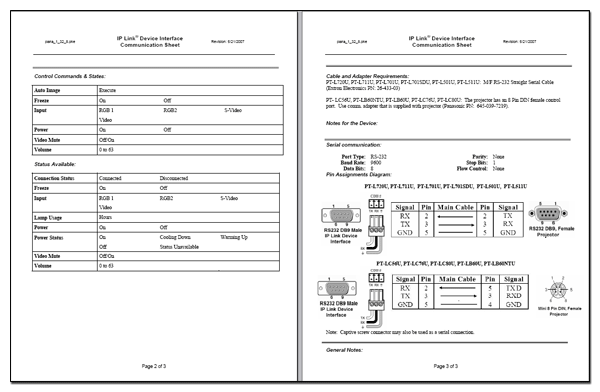

A multi-page specification sheet (example shown below) is displayed for the selected driver that includes device specifications, version history, driver notes, control commands and states, status available, cable and adapter requirements, notes for the device, serial communication, a diagram of pin assignments, and general notes.
