Mixer Operation

The MVC 121 Plus has two mic/line level inputs and a line level input, each of which are mixed into the fixed and variable line level outputs. See the Mix-point Gain section for more information regarding the Mix-point dialog box components and mix-point gain.

Mixer

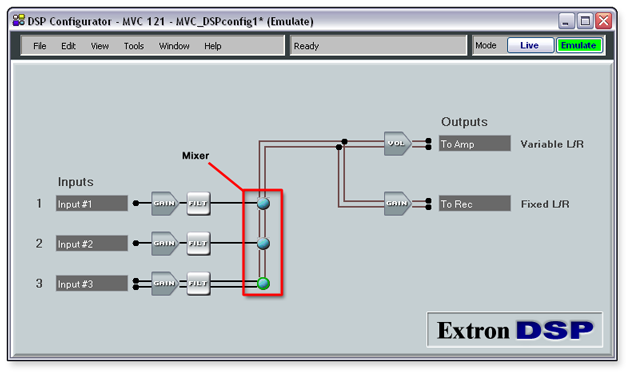

DSP Configurator provides control of the mixer that is used to mix all inputs to the outputs. Each of the microphone and stereo line inputs is connected to a mix-point for each of the outputs.  In general, mix levels are set relative to each other, achieving a desired blend of input signals at an optimal output level. The optimal output level is close to but not in excess of 0 dBFS at the output volume meter while accounting for processing that occurs at the line output signal chain).

Mix-point behavior is as follows:

• No mix information - A solid gray circle indicates that the mix-point exists but does not contain any mix information (the mix-point is muted).

• Mix information - A solid teal circle indicates that the mix-point contains mix information (the mix-point is unmuted).

• Mouse-over - When you hover the cursor over a mix-point, the cursor changes to a hand tool.

• Single-click - A single click brings focus to (selects) the mix-point. This is indicated by a dark green outline around the circle.

• Double-click - Double-clicking the mix-point opens the mix-point dialog box. The focus outline becomes light green for an open dialog box.

• Multiple open dialog boxes - When multiple mix-point dialog boxes are open, the mix-point for the most recently opened dialog box has a light green outline. The previously opened dialog boxes do not have a focus outline.
