AXI 22 AT D Plus

Interface audio Dante à 2 entrées et 2 sorties - Plaque murale au format Decorator

Caractéristiques principales

Deux entrées micro/ligne sur connecteurs XLR insèrent l'audio sur un réseau Dante^®
Deux sorties ligne sur un bornier à vis situé sur le panneau arrière extraient l'audio depuis un réseau Dante
Le réseau audio Dante offre de nombreuses possibilités d'expansion
Contrôlable via le réseau Dante
Convertisseurs professionnels analogique/numérique et numérique/analogique 24 bits sélectionnables jusqu'à 96 kHz
Compatible avec les plaques murales de la gamme WPD 100 Extron
Toutes les caractéristiques

AXI 22 AT D Plus with Included White Decorator-Style Wallplate

AXI 22 AT D Plus - Cover Plate Removed Showing USB Configuration Port

AXI 22 AT D Plus with Included Black Decorator-Style Wallplate

AXI 22 AT D Plus and WPD 102 XLRM with Included White Decorator-Style Wallplate

AXI 22 AT D Plus and WPD 102 XLRM - Front and Back

AXI 22 AT D Plus and WPD 102 XLRM with Included Black Decorator-Style Wallplate

AXI 22 AT D Plus and WPD 102 XLRM - Kit Pieces

Previous Next

Galerie d'images

Descriptions pour appel d'offres

Études de cas

Didacticiels sur Dante

Vue d'ensemble
Vidéo
Description
Caractéristiques techniques
Schéma
Schéma des panneaux
Téléchargements

Vue d'ensemble

L'AXI 22 AT D Plus Extron est une interface audio Dante^® à un gang au format Decorator conçue pour intégrer deux sources micro/ligne dans un système audio équipé de Dante. Elle comprend deux entrées audio XLR et une alimentation fantôme 48 V commutable pour la connexion et l'alimentation de microphones électrostatiques, ainsi qu'un contrôle à distance via le réseau pour chaque entrée. L'AXI 22 AT D Plus dispose également de deux sorties niveau ligne pour le routage de deux canaux Dante depuis le réseau vers l'entrée analogique d'un appareil de destination, ou la connexion d'une plaque murale secondaire optionnelle avec deux sorties XLR. L'AXI 22 AT D Plus se connecte à tous les processeurs audio équipés de Dante, tels que le DMP 128 Plus AT Extron, sur un réseau local standard et peut être alimentée via PoE. Cette fonctionnalité permet ainsi d'utiliser une seule connexion par câble réseau pour l'audio bidirectionnel, le contrôle, et l'alimentation depuis un rack d'équipement central.

Vidéo

Description

Caractéristiques techniques

Schéma

Schéma des panneaux

Téléchargements

Produits affichés récemment

AXI 22 AT D Plus

UCS SW 313

TLP Pro 1035T

Retractor SM

DTP3 T 331

SMK P SM 26/28

TLP Pro 535T

Gamme XTP DTP 22P

DSC HD-12G A

DTP HD DA 4K 230

Gamme de kits de montage Flex55 100

FOX3 R 111

AXI 22 AT D Plus

Description pour appel d'offres

Choisissez une référence :

Select a Part Number:

Copier le texte Copié Une erreur est survenue. Veuillez réessayer plus tard.

AXI 22 AT D Plus

Provide a remotely controllable, single-gang decorator-style Dante™ audio interface that shall support two mono analog inputs capable of microphone or line level signals, placed directly onto a Dante audio network, and two mono analog line level outputs for audio received from the Dante network.
1. Two input, two output, single-gang decorator-style audio expansion interface with Dante audio networking, and 24-bit audio converters
  1. Input Requirements
    1. Shall support two mono, microphone or line level, balanced or unbalanced signals on two female XLR connectors
    2. Shall provide selectable +48 volt phantom power for condenser microphones on each mic/line input
    3. Shall provide analog to digital conversion at selectable sampling rates with 24-bit resolution via Dante Controller
      1. Shall support 44.1, 48, 88.2, and 96 kHz sampling rates
  2. Output Requirements
    1. Shall support two mono line level, balanced or unbalanced signals on one 6-pole, 3.5 mm captive screw connector
      1. Outputs will be routed from Dante audio network
    2. Shall provide digital to analog conversion at selectable sampling rates with 24-bit resolution via Dante Controller
Shall support 44.1, 48, 88.2, and 96 kHz sampling rates
1. Configuration Software Requirements

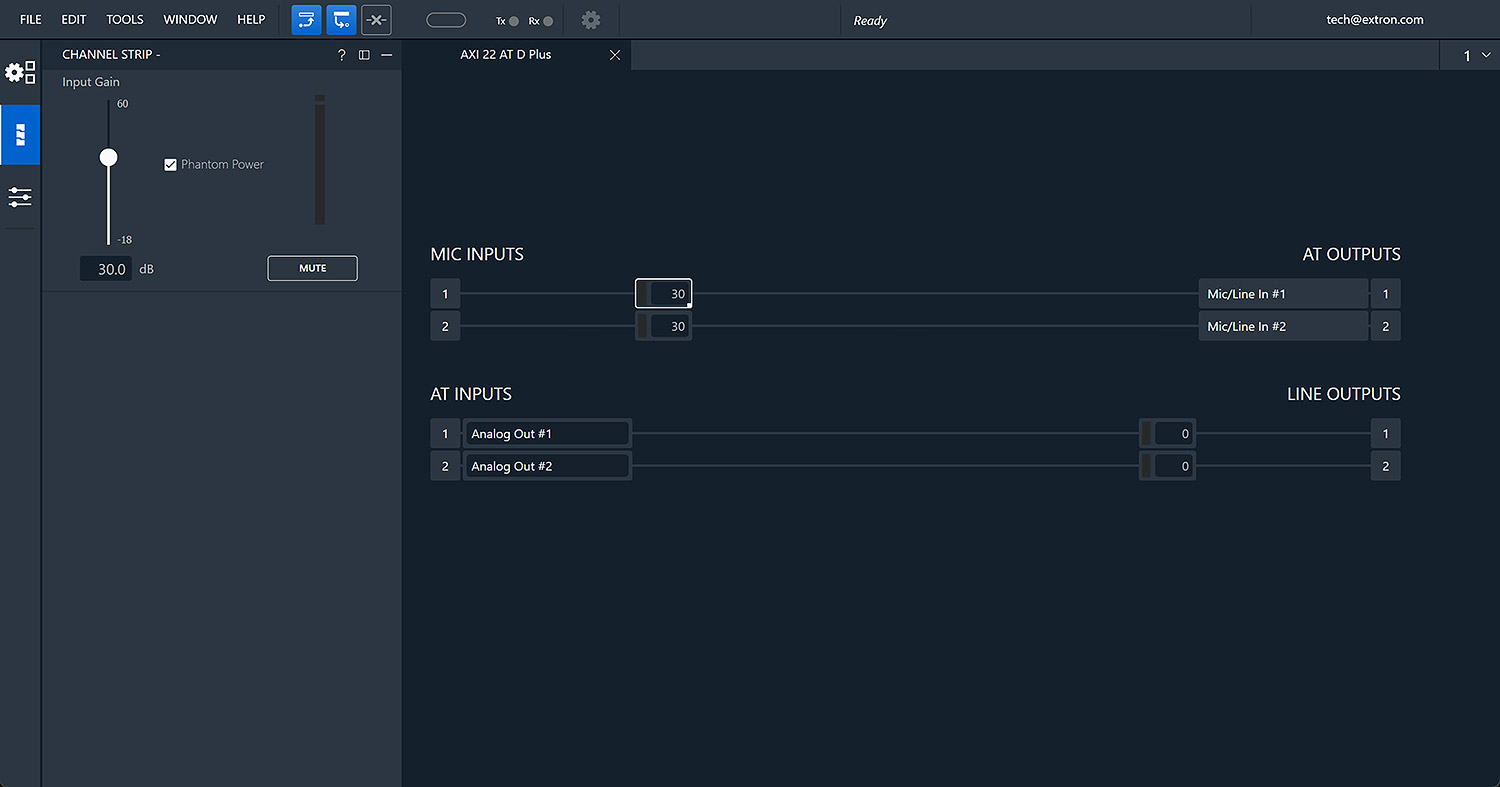

  1. Shall provide PC-based DSP Configurator software allowing flexible control of the audio expansion interface’s fixed architecture
  2. Shall provide a Live mode for real-time control of parameters
  3. Shall provide an Emulate mode for offline configuration
  4. Shall provide a single window view of all inputs and outputs
  5. Shall provide setup and configuration of processing blocks including, but not limited to: gain stages, channel mute, and phantom power
  6. Shall provide cut, copy, and paste editing between processing blocks
  7. Shall provide real-time metering of levels within each processing block in Live mode
  8. Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
  9. Shall provide keyboard-based navigation of configuration software utilizing bidirectional controls, keyboard shortcuts, and spreadsheet software-style commands
  10. Shall provide file saving in both Live and Emulate mode
  11. Shall provide file upload in both Live and Emulate mode
  12. Shall provide configuration and file saving of multiple, linked or networked processors from a single configuration session
2. Dante Audio Networking Requirements
  1. Shall support incoming and outgoing channels over a local area network using standard Internet protocols
    1. Up to two outgoing Dante channels may be routed to a Dante-equipped digital signal processor
    2. Up to two incoming Dante channels from a Dante-equipped digital signal processor may be tied to the audio interface’s output section
  2. Shall support Dante Controller software for digital audio network configuration
  3. Shall support Dante Domain Manager network management software for network security and logical segmenting.
  4. Shall support the AES67 standard for interoperability with other devices that also support AES67
  5. Shall provide an RJ-45 connector to support Dante audio network connection
  6. Shall provide uncompressed digital audio at selectable sampling rates with 24-bit resolution via Dante Controller
  7. Shall support 44.1, 48, 88.2, and 96 kHz sampling rates
3. Control Requirements
  1. Shall provide Ethernet monitoring and control via the Dante protocol using DSP Configurator software
  2. Shall support remote control operation via USB using DSP Configurator software
4. Front Panel Requirements
  1. Shall provide two mono mic/line level inputs on female XLR connectors
  2. Shall provide one USB-C port for connection to a Windows computer running DSP Configurator Software
    1. Shall be concealed behind a removable cover plate
  3. Shall provide a reset button
    1. Shall be concealed behind a removable cover plate
5. Rear Panel Requirements
  1. Shall provide an RJ-45 connector to support Dante digital audio network connection, up to two outgoing digital audio channels, up to two incoming digital audio channels, and PoE - Power over Ethernet
  2. Shall provide two balanced or unbalanced line level outputs on 6-pole, 3.5 mm captive screw connector
6. General Requirements
  1. Shall support optional energy-efficient external universal power supply with 2-pole captive screw connector
    1. Shall be universal in-line power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
    2. Shall provide output of 12 VDC, 0.5 A, 6 watts
    3. Shall support use of optional Extron ZipClip™ 100 mounting kit
    4. Shall meet energy efficiency level V and bear the UL Environment Energy Efficiency Certification (EEC) Mark
  2. Shall support remote powering through PoE with RJ-45 connection
    1. Shall conform to 802.3af standard
  3. Shall mount in an included decorator-style wallplate
  4. Shall include both black and white faceplates
  5. Shall meet regulatory compliances
    1. Shall meet safety compliances under CE and c-UL
    2. Shall meet EMI/EMC compliances under CE, C-Tick, c-UL, FCC Class A, ICES, and VCCI
    3. Shall comply with appropriate requirements of RoHS and WEEE
  6. Shall provide three years parts and labor warranty
Approved device shall be the Extron AXI 22 AT D Plus, part number 60-1947-01; no alternates or equals.

AXI 22 AT D Plus

Provide a remotely controllable, single-gang decorator-style Dante™ audio interface that shall support two mono analog inputs capable of microphone or line level signals, placed directly onto a Dante audio network, and two mono analog line level outputs for audio received from the Dante network.
1. Two input, two output, single-gang decorator-style audio expansion interface with Dante audio networking, and 24-bit audio converters
  1. Input Requirements
    1. Shall support two mono, microphone or line level, balanced or unbalanced signals on two female XLR connectors
    2. Shall provide selectable +48 volt phantom power for condenser microphones on each mic/line input
    3. Shall provide analog to digital conversion at selectable sampling rates with 24-bit resolution via Dante Controller
      1. Shall support 44.1, 48, 88.2, and 96 kHz sampling rates
  2. Output Requirements
    1. Shall support two mono line level, balanced or unbalanced signals on one 6-pole, 3.5 mm captive screw connector
      1. Outputs will be routed from Dante audio network
    2. Shall provide digital to analog conversion at selectable sampling rates with 24-bit resolution via Dante Controller
Shall support 44.1, 48, 88.2, and 96 kHz sampling rates
1. Configuration Software Requirements
  1. Shall provide PC-based DSP Configurator software allowing flexible control of the audio expansion interface’s fixed architecture
  2. Shall provide a Live mode for real-time control of parameters
  3. Shall provide an Emulate mode for offline configuration
  4. Shall provide a single window view of all inputs and outputs
  5. Shall provide setup and configuration of processing blocks including, but not limited to: gain stages, channel mute, and phantom power
  6. Shall provide cut, copy, and paste editing between processing blocks
  7. Shall provide real-time metering of levels within each processing block in Live mode
  8. Shall provide a Meter Bridge window for real-time metering of all input and output channels with clipping indication in Live mode
  9. Shall provide keyboard-based navigation of configuration software utilizing bidirectional controls, keyboard shortcuts, and spreadsheet software-style commands
  10. Shall provide file saving in both Live and Emulate mode
  11. Shall provide file upload in both Live and Emulate mode
  12. Shall provide configuration and file saving of multiple, linked or networked processors from a single configuration session
2. Dante Audio Networking Requirements
  1. Shall support incoming and outgoing channels over a local area network using standard Internet protocols
    1. Up to two outgoing Dante channels may be routed to a Dante-equipped digital signal processor
    2. Up to two incoming Dante channels from a Dante-equipped digital signal processor may be tied to the audio interface’s output section
  2. Shall support Dante Controller software for digital audio network configuration
  3. Shall support Dante Domain Manager network management software for network security and logical segmenting.
  4. Shall support the AES67 standard for interoperability with other devices that also support AES67
  5. Shall provide an RJ-45 connector to support Dante audio network connection
  6. Shall provide uncompressed digital audio at selectable sampling rates with 24-bit resolution via Dante Controller
  7. Shall support 44.1, 48, 88.2, and 96 kHz sampling rates
3. Control Requirements
  1. Shall provide Ethernet monitoring and control via the Dante protocol using DSP Configurator software
  2. Shall support remote control operation via USB using DSP Configurator software
4. Front Panel Requirements
  1. Shall provide two mono mic/line level inputs on female XLR connectors
  2. Shall provide one USB-C port for connection to a Windows computer running DSP Configurator Software
    1. Shall be concealed behind a removable cover plate
  3. Shall provide a reset button
    1. Shall be concealed behind a removable cover plate
5. Rear Panel Requirements
  1. Shall provide an RJ-45 connector to support Dante digital audio network connection, up to two outgoing digital audio channels, up to two incoming digital audio channels, and PoE - Power over Ethernet
  2. Shall provide two balanced or unbalanced line level outputs on 6-pole, 3.5 mm captive screw connector
6. General Requirements
  1. Shall support optional energy-efficient external universal power supply with 2-pole captive screw connector
    1. Shall be universal in-line power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
    2. Shall provide output of 12 VDC, 0.5 A, 6 watts
    3. Shall support use of optional Extron ZipClip™ 100 mounting kit
    4. Shall meet energy efficiency level V and bear the UL Environment Energy Efficiency Certification (EEC) Mark
  2. Shall support remote powering through PoE with RJ-45 connection
    1. Shall conform to 802.3af standard
  3. Shall mount in an included decorator-style wallplate
  4. Shall include both black and white faceplates
  5. Shall meet regulatory compliances
    1. Shall meet safety compliances under CE and c-UL
    2. Shall meet EMI/EMC compliances under CE, C-Tick, c-UL, FCC Class A, ICES, and VCCI
    3. Shall comply with appropriate requirements of RoHS and WEEE
  6. Shall provide three years parts and labor warranty
Approved device shall be the Extron AXI 22 AT D Plus, part number 60-1947-01; no alternates or equals.
