IPL EXP PDU4H

Interface d'expansion pour l'alimentation des systèmes de contrôle

Caractéristiques principales

Gestion de l'alimentation à distance pour les appareils audiovisuels
Quatre prises de courant IEC femelles séparées 100/240 VAC, 12/10 A max.
Contrôle à distance de l'activation/désactivation des prises de courant individuelles
Détection du courant total
Quatre ports de contrôle manuel
Fonctionnement indépendant avec une API Extron sécurisée
Toutes les caractéristiques

Previous Next

Galerie d'images

Aperçu interactif

Vidéos à la une

Récompenses

Lauréat SVC Innovative Product Awards 2022
AVNation Reader's Choice Awards 2021

Aide pour produits

Descriptions pour appel d'offres

Études de cas

Didacticiels

Vue d'ensemble
Vidéo
Description
Caractéristiques techniques
Schéma
Schéma des panneaux
Téléchargements

Vue d'ensemble

L'IPL EXP PDU4H Extron est une interface d'expansion pour systèmes de contrôle permettant une gestion centralisée de l'alimentation pour des systèmes audiovisuels de faible et moyenne dimension. Elle permet le contrôle à distance individuellement des sorties électriques ainsi que la détection du courant total. L'IPL EXP PDU4H se pilote en Ethernet et comprend quatre sorties électriques, quatre ports de contrôle manuel, et un relais pour accroître les capacités du système. Elle est adaptée pour être utilisée par un processeur de contrôle de la gamme IPCP Pro xi afin d'assurer une connexion sécurisée et chiffrée du contrôle de l'alimentation des appareils raccordés. Elle peut aussi fonctionner de manière indépendante en utilisant l'API sécurisée Extron, assurant une intégration optimale pour des applications spécialisées. L'IPL EXP PDU4H est un boîtier compact 1U d'un demi‑rack qui offre de nombreuses options de montage.

Vidéo

Description

Caractéristiques techniques

Schéma

Schéma des panneaux

Téléchargements

Produits affichés récemment

IPL EXP PDU4H

MMK 6

IPL EXP PDU4H

Description pour appel d'offres

Choisissez une référence :

Select a Part Number:

Copier le texte Copié Une erreur est survenue. Veuillez réessayer plus tard.

IPL EXP PDU4H

Provide an Ethernet-enabled power expansion interface for the purpose of remotely powering and monitoring connected AV equipment and AV systems.
1. Ethernet enabled power expansion interface
  1. Device shall have four switched IEC-320-C13 female outlets located on the back of the enclosure that can be used for centralized power management of connected devices
  2. Provide four contact closure Manual Control inputs on captive screw connectors located on the back of the enclosure that can be used for manual control of the four switched AC outlets
  3. Provide a single 24V relay located on the back of the enclosure that can be used for providing an audible or visual notification to the end user
  4. Provide a single 12A circuit breaker button located on the back of the enclosure for over-current protection
  5. Device shall have a female RJ-45 jack located on the back of the enclosure that allows for ethernet based control of the power expansion interface while supporting 10/100 Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues
  6. Device shall include a multi-function button located on the front of the enclosure that allows for the reset of the device or its communication properties at minimum
  7. Provide front panel LED activity indicators for power status, reset status, switched outlet status, breaker status, and network status
  8. Device shall support the following protocols: DHCP, DNS, HTTP (redirect), HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
  9. Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
  10. Device shall support aggregate current sensing for monitoring of power consumption that can be used for reporting and troubleshooting purposes
  11. Device shall include multiple, single-stage MOVs for providing up to 1,750 Joules of protection for attached devices
  12. Device shall support power up sequencing to prevent an in-rush power overload
  13. Device shall have at least 512 MB of nonvolatile memory
  14. Device shall be equipped with an internal universal AC power supply capable of supporting 100 – 240 VAC, 50/60 Hz power.
2. Mounting requirements
  1. Device shall be housed in a 1 RU, half rack width metal enclosure.
  2. Device shall be rack mountable using an optional rack shelf.
3. Software requirements
  1. The device may be configured or programmed using Extron’s Global Configurator Plus or Professional, or ControlScript Deployment Utility respectively.
  2. Device drivers and modules can be obtained through Extron support resources and database.
  3. Shall be configured or programmed by an Extron authorized user.
  4. The device’s configuration and settings shall be managed using either Extron’s Toolbelt software or via SIS-over-SSH
  5. Device shall include an embedded default webpage allowing for simple standalone control of the switched AC outlets
  6. Device shall be able to operate independently using a secure Extron API
4. Security Requirements
  1. Device shall support SFTP and SSH for secure communication between the control processor and the IPL EXP PDU
  2. Device shall support HTTPS for secure communication between the IPL EXP PDU and the embedded web pages
  3. Device shall provide the option to modify administrator and user credentials
  4. Device shall support security updates to maintain network health
  5. Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
  6. Device shall support the installation of an owner furnished certificate with the following properties:
    1. Certificates shall include x.509 support
    2. Certificates shall include public / private key exchange
    3. Certificates shall support PEM encoding
  7. Extron shall furnish documentation that describes all supported network ports and services
5. Shall meet regulatory compliances
  1. CE
  2. C-Tick
  3. c-UL
  4. FCC Class B
  5. ICES
  6. UL
  7. VCCI
  8. RoHs
  9. WEEE
6. Product Warranty
  1. Shall provide at least 3 years parts and labor
7. Approved device shall be the Extron IPL EXP PDU4H, part number 60-1956-01, no alternates or equals

IPL EXP PDU4H

Provide an Ethernet-enabled power expansion interface for the purpose of remotely powering and monitoring connected AV equipment and AV systems.
1. Ethernet enabled power expansion interface
  1. Device shall have four switched IEC-320-C13 female outlets located on the back of the enclosure that can be used for centralized power management of connected devices
  2. Provide four contact closure Manual Control inputs on captive screw connectors located on the back of the enclosure that can be used for manual control of the four switched AC outlets
  3. Provide a single 24V relay located on the back of the enclosure that can be used for providing an audible or visual notification to the end user
  4. Provide a single 12A circuit breaker button located on the back of the enclosure for over-current protection
  5. Device shall have a female RJ-45 jack located on the back of the enclosure that allows for ethernet based control of the power expansion interface while supporting 10/100 Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues
  6. Device shall include a multi-function button located on the front of the enclosure that allows for the reset of the device or its communication properties at minimum
  7. Provide front panel LED activity indicators for power status, reset status, switched outlet status, breaker status, and network status
  8. Device shall support the following protocols: DHCP, DNS, HTTP (redirect), HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
  9. Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
  10. Device shall support aggregate current sensing for monitoring of power consumption that can be used for reporting and troubleshooting purposes
  11. Device shall include multiple, single-stage MOVs for providing up to 1,750 Joules of protection for attached devices
  12. Device shall support power up sequencing to prevent an in-rush power overload
  13. Device shall have at least 512 MB of nonvolatile memory
  14. Device shall be equipped with an internal universal AC power supply capable of supporting 100 – 240 VAC, 50/60 Hz power.
2. Mounting requirements
  1. Device shall be housed in a 1 RU, half rack width metal enclosure.
  2. Device shall be rack mountable using an optional rack shelf.
3. Software requirements
  1. The device may be configured or programmed using Extron’s Global Configurator Plus or Professional, or ControlScript Deployment Utility respectively.
  2. Device drivers and modules can be obtained through Extron support resources and database.
  3. Shall be configured or programmed by an Extron authorized user.
  4. The device’s configuration and settings shall be managed using either Extron’s Toolbelt software or via SIS-over-SSH
  5. Device shall include an embedded default webpage allowing for simple standalone control of the switched AC outlets
  6. Device shall be able to operate independently using a secure Extron API
4. Security Requirements
  1. Device shall support SFTP and SSH for secure communication between the control processor and the IPL EXP PDU
  2. Device shall support HTTPS for secure communication between the IPL EXP PDU and the embedded web pages
  3. Device shall provide the option to modify administrator and user credentials
  4. Device shall support security updates to maintain network health
  5. Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
  6. Device shall support the installation of an owner furnished certificate with the following properties:
    1. Certificates shall include x.509 support
    2. Certificates shall include public / private key exchange
    3. Certificates shall support PEM encoding
  7. Extron shall furnish documentation that describes all supported network ports and services
5. Shall meet regulatory compliances
  1. CE
  2. C-Tick
  3. c-UL
  4. FCC Class B
  5. ICES
  6. UL
  7. VCCI
  8. RoHs
  9. WEEE
6. Product Warranty
  1. Shall provide at least 3 years parts and labor
7. Approved device shall be the Extron IPL EXP PDU4H, part number 60-1956-01, no alternates or equals

IPL EXP PDU4H

Provide an Ethernet-enabled power expansion interface for the purpose of remotely powering and monitoring connected AV equipment and AV systems.
1. Ethernet enabled power expansion interface
  1. Device shall have four switched IEC-320-C13 female outlets located on the back of the enclosure that can be used for centralized power management of connected devices
  2. Provide four contact closure Manual Control inputs on captive screw connectors located on the back of the enclosure that can be used for manual control of the four switched AC outlets
  3. Provide a single 24V relay located on the back of the enclosure that can be used for providing an audible or visual notification to the end user
  4. Provide a single 12A circuit breaker button located on the back of the enclosure for over-current protection
  5. Device shall have a female RJ-45 jack located on the back of the enclosure that allows for ethernet based control of the power expansion interface while supporting 10/100 Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues
  6. Device shall include a multi-function button located on the front of the enclosure that allows for the reset of the device or its communication properties at minimum
  7. Provide front panel LED activity indicators for power status, reset status, switched outlet status, breaker status, and network status
  8. Device shall support the following protocols: DHCP, DNS, HTTP (redirect), HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
  9. Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
  10. Device shall support aggregate current sensing for monitoring of power consumption that can be used for reporting and troubleshooting purposes
  11. Device shall include multiple, single-stage MOVs for providing up to 1,750 Joules of protection for attached devices
  12. Device shall support power up sequencing to prevent an in-rush power overload
  13. Device shall have at least 512 MB of nonvolatile memory
  14. Device shall be equipped with an internal universal AC power supply capable of supporting 100 – 240 VAC, 50/60 Hz power.

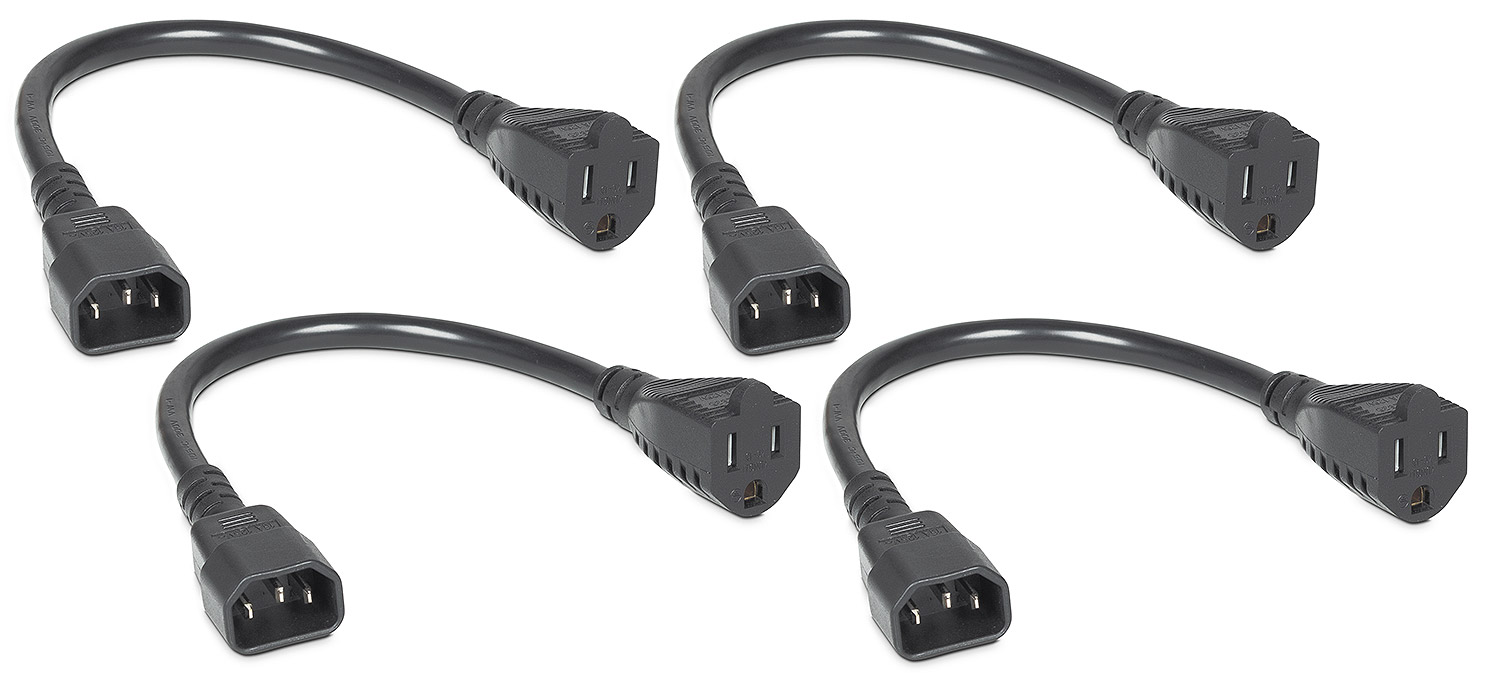

  15. Device shall include four one-foot cables allowing you to connect a power cord with a NEMA 5-15P plug into the IEC-320-C13 outlet of the PDU
2. Mounting requirements
  1. Device shall be housed in a 1 RU, half rack width metal enclosure.
  2. Device shall be rack mountable using an optional rack shelf.
3. Software requirements
  1. The device may be configured or programmed using Extron’s Global Configurator Plus or Professional, or ControlScript Deployment Utility respectively.
  2. Device drivers and modules can be obtained through Extron support resources and database.
  3. Shall be configured or programmed by an Extron authorized user.
  4. The device’s configuration and settings shall be managed using either Extron’s Toolbelt software or via SIS-over-SSH
  5. Device shall include an embedded default webpage allowing for simple standalone control of the switched AC outlets
  6. Device shall be able to operate independently using a secure Extron API
4. Security Requirements
  1. Device shall support SFTP and SSH for secure communication between the control processor and the IPL EXP PDU
  2. Device shall support HTTPS for secure communication between the IPL EXP PDU and the embedded web pages
  3. Device shall provide the option to modify administrator and user credentials
  4. Device shall support security updates to maintain network health
  5. Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
  6. Device shall support the installation of an owner furnished certificate with the following properties:
    1. Certificates shall include x.509 support
    2. Certificates shall include public / private key exchange
    3. Certificates shall support PEM encoding
  7. Extron shall furnish documentation that describes all supported network ports and services
5. Shall meet regulatory compliances
  1. CE
  2. C-Tick
  3. c-UL
  4. FCC Class B
  5. ICES
  6. UL
  7. VCCI
  8. RoHs
  9. WEEE
6. Product Warranty
  1. Shall provide at least 3 years parts and labor
7. Approved device shall be the Extron IPL EXP PDU4H, part number 60-1956-02, no alternates or equals

IPL EXP PDU4H

Provide an Ethernet-enabled power expansion interface for the purpose of remotely powering and monitoring connected AV equipment and AV systems.
1. Ethernet enabled power expansion interface
  1. Device shall have four switched IEC-320-C13 female outlets located on the back of the enclosure that can be used for centralized power management of connected devices
  2. Provide four contact closure Manual Control inputs on captive screw connectors located on the back of the enclosure that can be used for manual control of the four switched AC outlets
  3. Provide a single 24V relay located on the back of the enclosure that can be used for providing an audible or visual notification to the end user
  4. Provide a single 12A circuit breaker button located on the back of the enclosure for over-current protection
  5. Device shall have a female RJ-45 jack located on the back of the enclosure that allows for ethernet based control of the power expansion interface while supporting 10/100 Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the jack for troubleshooting network issues
  6. Device shall include a multi-function button located on the front of the enclosure that allows for the reset of the device or its communication properties at minimum
  7. Provide front panel LED activity indicators for power status, reset status, switched outlet status, breaker status, and network status
  8. Device shall support the following protocols: DHCP, DNS, HTTP (redirect), HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
  9. Supports a web-based AV resource management application that provides a means to manage, monitor, and control AV equipment
  10. Device shall support aggregate current sensing for monitoring of power consumption that can be used for reporting and troubleshooting purposes
  11. Device shall include multiple, single-stage MOVs for providing up to 1,750 Joules of protection for attached devices
  12. Device shall support power up sequencing to prevent an in-rush power overload
  13. Device shall have at least 512 MB of nonvolatile memory
  14. Device shall be equipped with an internal universal AC power supply capable of supporting 100 – 240 VAC, 50/60 Hz power.
  15. Device shall include four one-foot cables allowing you to connect a power cord with a NEMA 5-15P plug into the IEC-320-C13 outlet of the PDU
2. Mounting requirements
  1. Device shall be housed in a 1 RU, half rack width metal enclosure.
  2. Device shall be rack mountable using an optional rack shelf.
3. Software requirements
  1. The device may be configured or programmed using Extron’s Global Configurator Plus or Professional, or ControlScript Deployment Utility respectively.
  2. Device drivers and modules can be obtained through Extron support resources and database.
  3. Shall be configured or programmed by an Extron authorized user.
  4. The device’s configuration and settings shall be managed using either Extron’s Toolbelt software or via SIS-over-SSH
  5. Device shall include an embedded default webpage allowing for simple standalone control of the switched AC outlets
  6. Device shall be able to operate independently using a secure Extron API
4. Security Requirements
  1. Device shall support SFTP and SSH for secure communication between the control processor and the IPL EXP PDU
  2. Device shall support HTTPS for secure communication between the IPL EXP PDU and the embedded web pages
  3. Device shall provide the option to modify administrator and user credentials
  4. Device shall support security updates to maintain network health
  5. Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity
  6. Device shall support the installation of an owner furnished certificate with the following properties:
    1. Certificates shall include x.509 support
    2. Certificates shall include public / private key exchange
    3. Certificates shall support PEM encoding
  7. Extron shall furnish documentation that describes all supported network ports and services
5. Shall meet regulatory compliances
  1. CE
  2. C-Tick
  3. c-UL
  4. FCC Class B
  5. ICES
  6. UL
  7. VCCI
  8. RoHs
  9. WEEE
6. Product Warranty
  1. Shall provide at least 3 years parts and labor
7. Approved device shall be the Extron IPL EXP PDU4H, part number 60-1956-02, no alternates or equals

Ajouter cet élément au panier

Order Message Number

Référence

Remarque : Les produits Extron utilisant la prise d’alimentation universelle acceptent un nombre de types de prises différents. Avant l’utilisation, assurez-vous que l’appareil réponde aux toutes les exigences réglementaires pour votre région et qu’il soit compatible avec les codes et les standards locaux électriques et de sécurité applicables.

Qté

Total actuel :

Voir mon panier

IPL EXP PDU4H -

Détails du produit

Annotation Graphics Processor

To view this page ensure that Adobe Flash Player version 11.0.0 or greater is installed and enabled.

Partager cet élément par e-mail

IPL EXP PDU4H

Interface d'expansion pour l'alimentation des systèmes de contrôle

Envoyé à: *

Veuillez entrer une adresse électronique valide.

Message:

( caractère(s) restant(s))

Envoyez-moi une copie

Merci. Votre e-mail a été envoyé.

Une erreur est survenue lors de l'envoi de votre e-mail. Veuillez réessayer ultérieurement.
