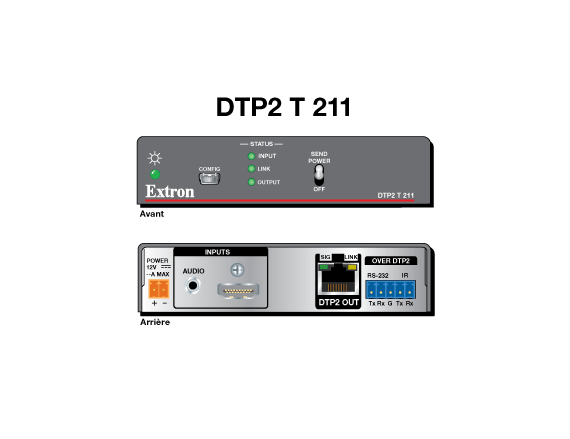

| DTP2 T 211 |
|
 specification |
|---|
 |
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4 |
| Color bit depth1 | 8 bits per color |
| Signal Type | HDMI 1.4, 2.0b; HDCP 1.4, 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate. |
|
|
| Video |
|---|
| NOTE | Extron strongly recommends compatibility testing while designing, and before installing, any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Applications Engineer for more information. |
|
| Maximum data rate | 18 Gbps (6 Gbps per color) |
| Maximum pixel clock | 600 MHz |
| Resolution range | 2560x1600 @ 60 Hz or 1080p @ 60 Hz,
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz,
UHD (3840x2160) @ 60 Hz |
| Color bit depth | 8 bits — subject to the maximum data rate limit |
| Formats | RGB digital video |
| Standards | DVI 1.0; HDMI 1.4, 2.0b; HDCP 1.4, 2.3, CEA-861-F |
|
| Video input |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D*) |
| Connectors | 1 female HDMI type A |
| Horizontal frequency | 15 kHz to 150 kHz |
| Vertical frequency | 24 Hz to 120 Hz for resolutions up to 18 Gbps |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
|

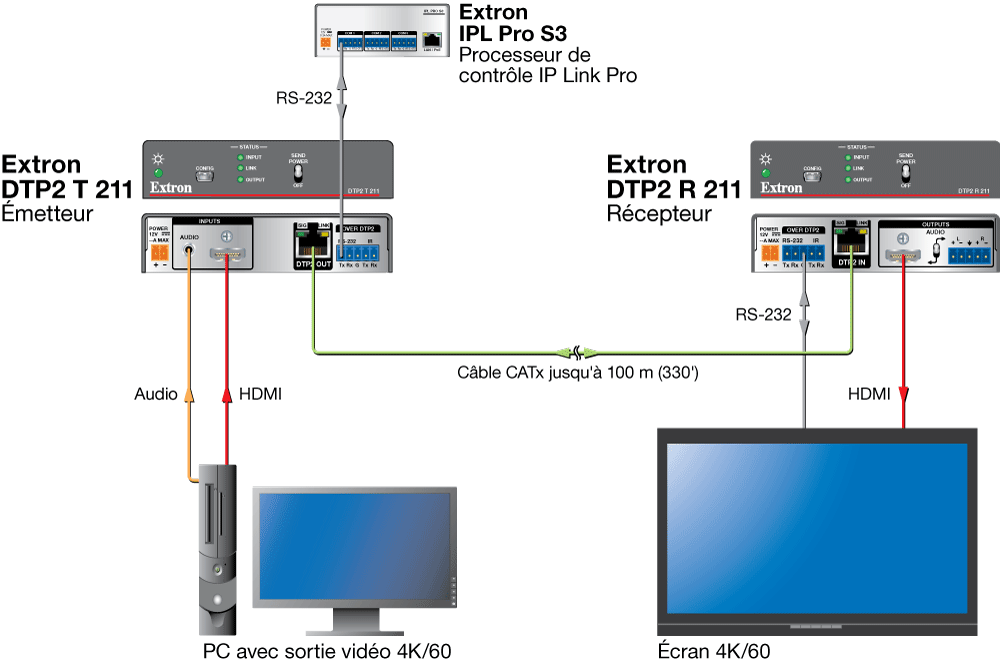

| Interconnection between transmitter and receiver |
|---|
| Connectors | 1 female RJ-45 per unit |
| Termination standard | TIA/EIA T568B |
| Signal transmission distance | Up to 330' (100 m) using shielded twisted pair (STP) cable or XTP DTP 24 STP cable |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (shielded twisted pair) |
| NOTE | Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance. |
|
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dBu; balanced output +6 dBu |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | 0.03% @ 20 Hz to 20 kHz at maximum output |
| S/N | >90 dB, at maximum output (15 dBu), balanced (unweighted) |
| Stereo channel separation | >80 dB @ 1 kHz to 20 kHz |
|
| Audio input |
|---|
| Number/signal type | 1 PC level stereo, unbalanced
1 Digital Embedded Audio on HDMI |
| NOTE | Analog audio can be configured for embedding onto the digital video signal at the Transmitter. Embedded digital audio can be (configured) de-embedded from the digital video signal at the Receiver end. |
|
| Connectors | (1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground)
(1) Female HDMI |
| Impedance | >10k ohms, DC coupled |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level | +7 dBV (unbalanced) |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Communication — external device (pass-through, unidirectional or bidirectional) |
|---|
| Serial control port input/output | RS-232 via (1) 3.5 mm, 5 pole captive screw connector for RS-232 control (±5 V) (connector is shared with IR control port) |
| Serial control port output/input | 1 set of proprietary signals on a female RJ-45 jack |
| Baud rate and protocol | 300 to 115200 baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = Gnd |
| IR control port | (1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
| IR control pin configuration | 3 = Gnd, 4 = IR Tx, 5 = IR Rx |
|
| General |
|---|
| Power supply | External (included with Tx)
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 Watts |
| Power consumption | |
| Device | 4.9 watts |
| Device and power supply | 6.3 watts |
| Remote power budget | 18 watts |
| NOTE | Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the twisted pair cable. |
|
| NOTE | DTP2 devices can only send power to other DTP2 devices. DO NOT send power to DTP devices or they will be damaged. |
|
| Ambient temperature/humidity | Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents |
| Thermal dissipation | |
| Device | 16.4 BTU/HR |
| Device and power supply | 21.2 BTU/HR |
| Mounting |
| Rack mount | Yes, with optional 1U high rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 4.3" W x 6.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 15.2 cm D)
(Depth excludes connectors.) |
| Product weight | 0.562 lb (0.255 kg) |
| Regulatory compliance | CE, C-Tick, FCC Class A, ICES, VCCI, KCC, c-UL, RoHS, UL
UL rated for use in plenum airspaces: meets UL for heat and smoke release, excluding the power supply. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (5983-D6) |
