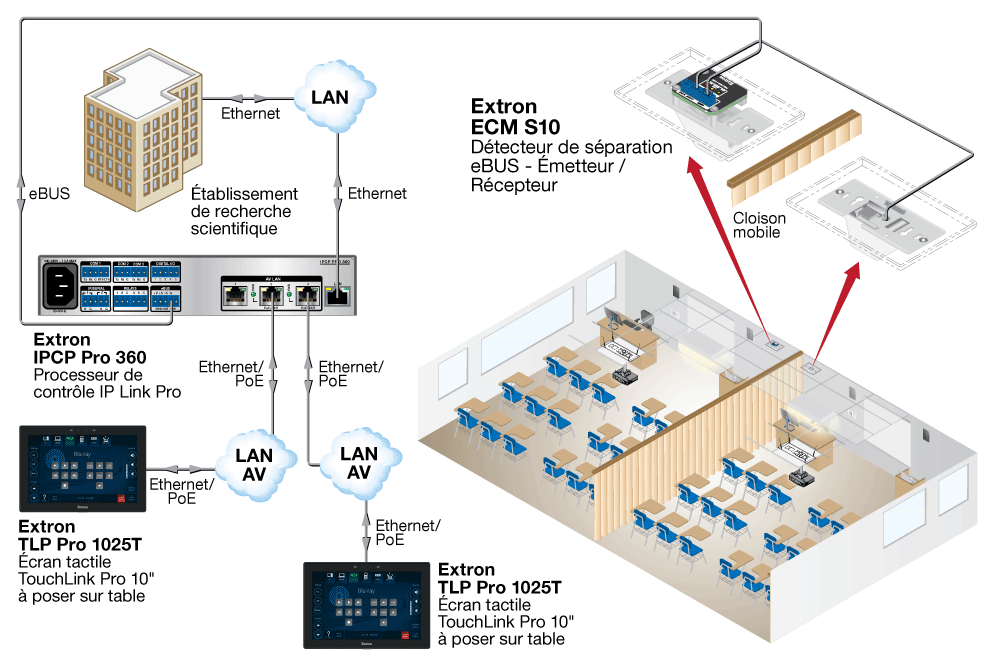

| ECM S10 |
|
| eBUS control interface |
|---|
| eBUS control | (1) 3.5 mm captive screw connectors, 4 pole |
| eBUS pin configuration | +V = +12 VDC; +S = + signal; -S = - signal; G = ground |
| Recommended cable type | Extron STP20-2/1000 or STP20-2P/1000 cable |
| Maximum system cable length | 1000 feet (305 meters) sum total for the eBUS system, regardless of topology. Power injection may be required depending on system cabling topology and primary power supply wattage. See the ECM S10 Setup Guide or eBUS Technology Reference Guide for details. |
|
| ECM S10 — Receiver |
|---|
| Digital output | |
| Connectors | (1) 3.5 mm captive screw connectors, 2 pole |
| Low logic | 0 VDC ~ 2.0 VDC |
| High logic | 2.8 VDC ~ 5.0 VDC |
| Hysteresis | 0.8 VDC |
| Pullup | fixed |
| Power output | |
| Connector | (1) 3.5 mm captive screw connectors, 2 pole
provides power to transmitter |
| Power output | 14 VDC @ 100 mA |
| Detecting Distance | 10 feet (3.0 m) |
| Operating angle | Transmitter/Receiver 3-15 degrees |
|
| ECM S10 — Transmitter |
|---|
| Light source | Infrared LED (870 nm wavelength) |
|
| Software and control options |
|---|
| Configuration software | Global Configurator Plus and Professional |
| Programming software | Global Scripter |
| Control apps | Extron Control |
| Utilities | Toolbelt |
|
| General |
|---|
| Power | |
| Transmitter | 14 VDC (supplied by ECM S10 receiver) |
| Receiver | 12 VDC (Power is supplied by an Extron IPCP Pro series control processor or optional power supply) |
| Power consumption | 1.0 watts (transmitter and receiver combined) |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 35% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 35% to 85%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | 2.6 BTU (transmitter and receiver combined) |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | Yes, in a standard 1-gang US, EU or MK junction box.
Oversized 1-gang Decorator style faceplate (included). |
| Enclosure type | Plastic faceplate, metal mounting plate |
| Enclosure dimensions |
| Faceplate | (Transmitter and Receiver) Oversized 1-gang Decorator style (included)
5.25" H x 3.50" W (134 mm H x 89 mm W) |
| Device | |
| Transmitter | 4.20" H x 1.75" W x 1.66" D (108 mm H x 45 mm W x 42 mm D) |
| Receiver | 4.20" H x 1.75" W x 2.46" D (108 mm H x 45 mm W x 63 mm D) |
| |  |
| Product weight | |
| Transmitter | 0.15 lb (0.07 kg) |
| Receiver | 0.20 lb (0.09 kg) |
| Regulatory compliance | CE, c-UL, C-Tick, FCC Class A, ICES, RoHS, UL, VCCI class A, WEEE |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (4783-D3) |
