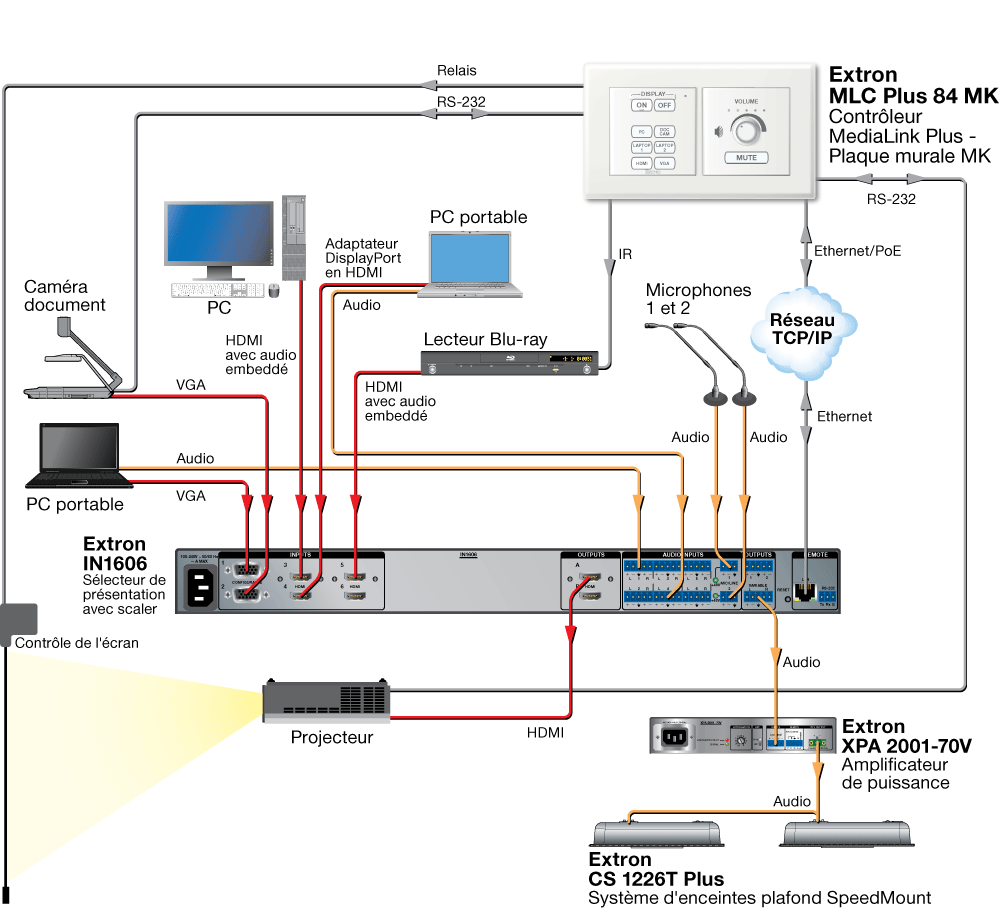

| MLC Plus 84 MK |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Software |
|---|
| Configuration software | Global Configurator® Plus and Professional |
| Control apps | Extron Control |
| Resource management software | GlobalViewer® Enterprise |
| Utilities | Toolbelt, embedded web page |
|
| Ethernet |
|---|
| Network interface controllers (NICs) | 1 |
| Connector | 1 female RJ-45 connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| Serial |
|---|
| Quantity/type | 2 bidirectional RS-232 |
| Connectors | (2) 3.5 mm captive screw connectors, 3 pole |
| Baud rate and protocol | 300 to 115200 baud (9600 baud = default);
8 (default) or 7 data bits;
1 (default) or 2 stop bits;
no parity (default), even, or odd parity |
| NOTE | These ports support software flow control. The default is no flow control. |
|
| Pin configurations | |
| Serial, 3-pole captive screw | Pin 1 = Tx, 2 = Rx, 3 = Gnd |
|
| Digital input |
|---|
| Quantity/type | 1 digital input |
| Connectors | (1) 3.5 mm captive screw connector, 2 pole |
| Digital input | |
| Input voltage range | 0 to 24 VDC, clamped at +30 VDC |
| Input impedance | 17.5k ohms |
| Programmable pullup | 1k ohms to +5 VDC |
| Threshold low to high | 2.8 VDC |
| Threshold high to low | 2.0 VDC |
| Pin configurations | 1 = digital input, 2 = Gnd |
|
| IR |
|---|
| Quantity/type | 1 TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz |
| Connectors | (1) 3.5 mm captive screw connector, 2-pole |
| Pin configurations | Pin 1 = signal, 2 = Gnd |
| IR output carrier frequency | 30 kHz to 300 kHz |
|
| Relay |
|---|
| Quantity/type | 2 normally open relays |
| Relay control connectors | (1) 3.5 mm captive screw connector, 3 pole |
| Relay control contact rating | 24 VDC, 1 A |
|
| Volume control |
|---|
| Quantity/type | 1 volume control (compatible with select Extron amplifiers) |
| Connectors | (1) 3.5 mm captive screw connector, 3 pole |
| Pin configuration | Pin 1 = ≤10 VDC reference voltage input, pin 2 = 0 to +10 VDC control voltage output, pin 3 = Gnd |
| Control voltage output range | 0 to +10 VDC (±0.2 volts), adjustable |
|
| General |
|---|
| Power supply | External (not included)
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts
Or
Power over Ethernet (PoE) (complies with PoE 802.3af, class 3), 48 VDC, 0.35 A, 16.8 watts
|
| Power consumption | |
| Device | 2.6 watts, 12 VDC |
| Device and power supply | 3.5 watts, 100-240 VAC, 50-60 Hz |
| Device and PoE injector | 6.8 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| Device | 8.9 BTU/hr |
| Device and power supply | 11.8 BTU/hr |
| Device and PoE injector | 23.0 BTU/hr |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | Yes, with an MK 2-gang electrical junction box and included MK 2-gang frame |
| Enclosure type | Plastic faceplate and high-impact plastic rear enclosure |
| Enclosure dimensions | |
| Faceplate | 3.38" H x 5.79" W x 0.39" D (86 mm H x 147 mm W x 9.9 mm D) |
| Device | 1.88" H x 4.37" W x 1.55" D (48 mm H x 111 mm W x 39 mm D)
(Depth excludes buttons. Fits many 2 gang MK junction boxes. Allow at least 1.6" [40 mm] depth in the wall or furniture.) |
| |  |
| Product weight | 0.4 lbs (0.2 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE, and of Section 508 of the Rehabilitation Act (29 U.S.C. 794d). |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6021-D12) |
