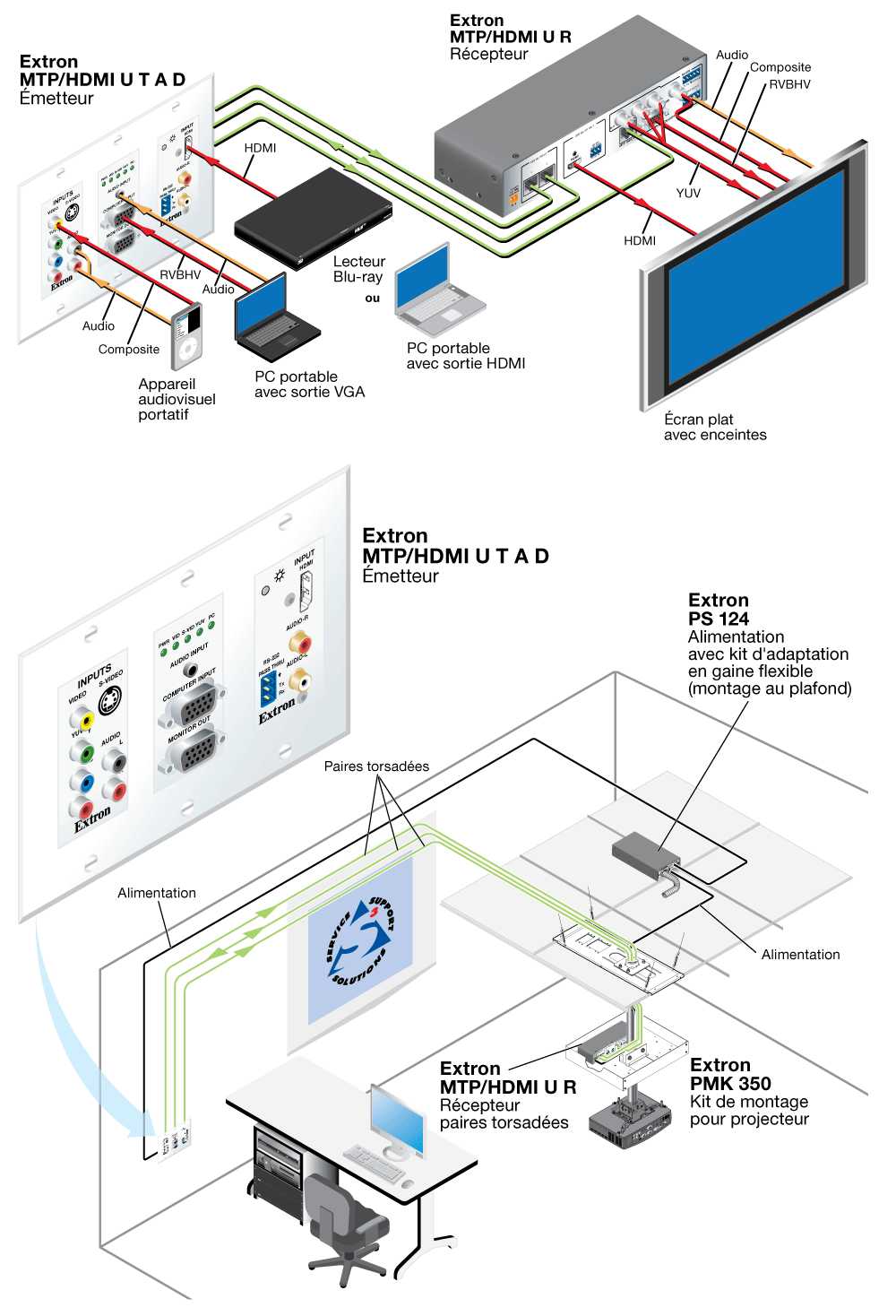

| MTP/HDMI U R |
|
| Video |
|---|
| MTP input | |
| Gain | Unity |
| Maximum resolution | |
| Analog | Up to 2048x1080 or 1080p @ 60 Hz |
| Signal transmission distance, analog |  |
| HDMI digital input | |
| Maximum data rate | 4.95 Gbps (1.65 Gbps per color) |
| Maximum pixel clock | 165 MHz |
| Maximum resolution | |
| Digital | Up to 1920x1200 or 1080p @ 60 Hz |
| Signal transmission distance, digital |  |
| NOTE | The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system. |
|
| NOTE | Shielded twisted pair cable provides added protection from outside interference and increases overall signal transmission distance. Extron strongly recommends using shielded twisted pair for optimal performance. |
|
| Formats | RGB and YCbCr digital video |
| Standards | DVI 1.0, HDMI 1.2 |
|
| Video input |
|---|
| Number/signal type | |
| MTP input | 1 set of proprietary analog signals |
| HDMI digital input | 1 set of proprietary digital signals |
| Connectors | |
| MTP input | 1 female RJ-45 |
| HDMI digital input | 2 female RJ-45 |
|
| Video output |
|---|
| Number/signal type | |
| Analog output | 1 RGBHV, RGBS, component video (bi-level and tri-level), S-video, composite video (follows input type) |
| HDMI digital output | 1 single link HDMI (or DVI-D*) |
| NOTE | *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. |
|
| Connectors | |
| Analog output | 1 female 15-pin HD for RGB
3 female BNC for Y, R-Y, B-Y
1 female 4-pin mini DIN for S-video (Y/C)
1 female BNC for composite video |
| HDMI digital output | 1 female HDMI type A |
| Nominal levels | Analog outputs:
1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | Analog outputs: 0.8 V to 1.2 Vp-p |
| Impedance | Analog outputs: 75 ohms (during video output only) |
| Return loss | Analog outputs: <-30 dB @ 5 MHz (during video output only) |
| DC offset | Analog outputs: <±20 mV with input at 0 offset |
|
| Sync — analog outputs |
|---|
| Output type | RGBHV, RGBS, component video (bi- or tri-level) |
| Standards | NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Output level | 4.0 V to 5.0 Vp-p, unterminated |
| Output impedance | 87 ohms (24 mA) |
| Polarity | Positive or negative (selectable) |
|
| Audio — from MTP input |
|---|
| Gain | Unbalanced output: 0 dB; balanced output: +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±1 dB |
| THD + Noise | 0.15% @ 1 kHz, 0.3% @ 20 kHz at nominal level |
| S/N | >70 dB at maximum output (unweighted) |
|
| Audio input — from MTP input, see MTP transmitter's audio output specifications |
|---|
| Number/signal type | 1 set of proprietary analog signals |
| Connectors | 1 female RJ-45 |
| NOTE | 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
| Audio output — from MTP input |
|---|
| Number/signal type | 2 mono, balanced/unbalanced |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±1 dB channel to channel |
|
| Control/remote — external device (pass-through) from the HDMI input |
|---|
| Serial control port input/output | RS-232 via (1) 3.5 mm, 3 pole captive screw connector |
| Serial control pin configuration | Captive screw connector: 1 = Tx, 2 = Rx, 3 = GND |
|
| Control/remote — external device (pass-through, unidirectional or bidirectional) from the MTP input |
|---|
| Serial control port input/output | RS-232 via (1) 3.5 mm, 5 pole captive screw connector (3 poles are used) |
| Baud rates | Up to 38400 bps at up to 600' (183 m) (Higher data rates and distances are possible.
Performance varies based on baud rate and cable length.) |
| Protocol | Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, none |
| NOTE | Protocol is mirrored between the transmitter and the receiver. |
|
| Serial control pin configuration | Captive screw connector: 1 = Tx, 2 = Rx, 3 = GND |
|
| General |
|---|
| Recommended cable type | Shielded or unshielded |
| MTP input | CAT 5/5e/6 |
| HDMI digital input | CAT 5/5e/6, Extron STP201 |
| NOTE | Shielded twisted pair cable provides added protection from outside interference and increases overall signal transmission distance. Extron strongly recommends using shielded twisted pair for optimal performance. |
|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts |
| Power input requirements | 12 VDC, 0.8 A |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | 18.1 BTU/hr |
| Mounting |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Pole mount | Yes, with optional projector mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.7" H x 8.75" W x 3.0" D (half rack wide)
(4.3 cm H x 22.2 cm W x 7.6 cm D)
(Depth excludes connectors.) |
| Product weight | 0.8 lbs (0.4 kg) |
| Shipping weight | 2 lbs (1 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL
UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release, excluding the power supply. |
| EMI/EMC | CE, C-tick, FCC Class A, ICES, VCCI |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
