| Network Button Panels — US Gang Series |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Software |
|---|
| Configuration software | Global Configurator® Plus and Professional |
| Programming software | Global Scripter®
ControlScript® Deployment Utility and ControlScript Extension for VS Code |
| Control apps | Extron Control |
| Resource management software | GlobalViewer® Enterprise |
| Utilities | Toolbelt, embedded web page |
|
| Ethernet |
|---|
| Network interface controllers (NICs) | 1 |
| Connector | 1 female RJ-45 connector |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.253
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) |
| Power consumption — Power injector (PI 115) | |
| NBP 50 | |
| Device | 2.1 watts |
| Device and PoE injector | 4.3 watts |
| NBP 100 | |
| Device | 2.2 watts |
| Device and PoE injector | 3.9 watts |
| NBP 200 | |
| Device | 3.0 watts |
| Device and PoE injector | 4.0 watts |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation | |
| NBP 50 | |
| Device | 7.1 BTU/hr |
| Device and PoE injector | 14.6 BTU/hr |
| NBP 100 | |
| Device | 7.3 BTU/hr |
| Device and PoE injector | 13.3 BTU/hr |
| NBP 200 | |
| Device | 10.0 BTU/hr |
| Device and PoE injector | 13.5 BTU/hr |
| Mounting | |
| Rack mount | No |
| Furniture or wall mount | |
| NBP 50, NBP 100 | Yes, in a standard US 2-gang electrical junction box or mud ring |
| NBP 200 | Yes, in a standard US 3-gang electrical junction box or mud ring |
| Enclosure type | Plastic faceplate and high-impact plastic rear enclosure |
| Enclosure dimensions | |
| NBP 50, NBP 100 | |

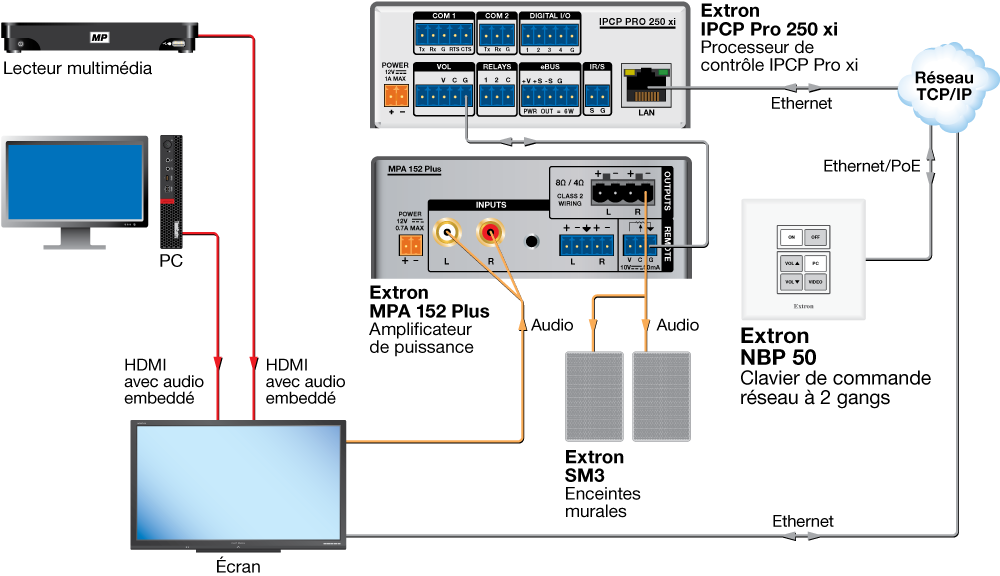

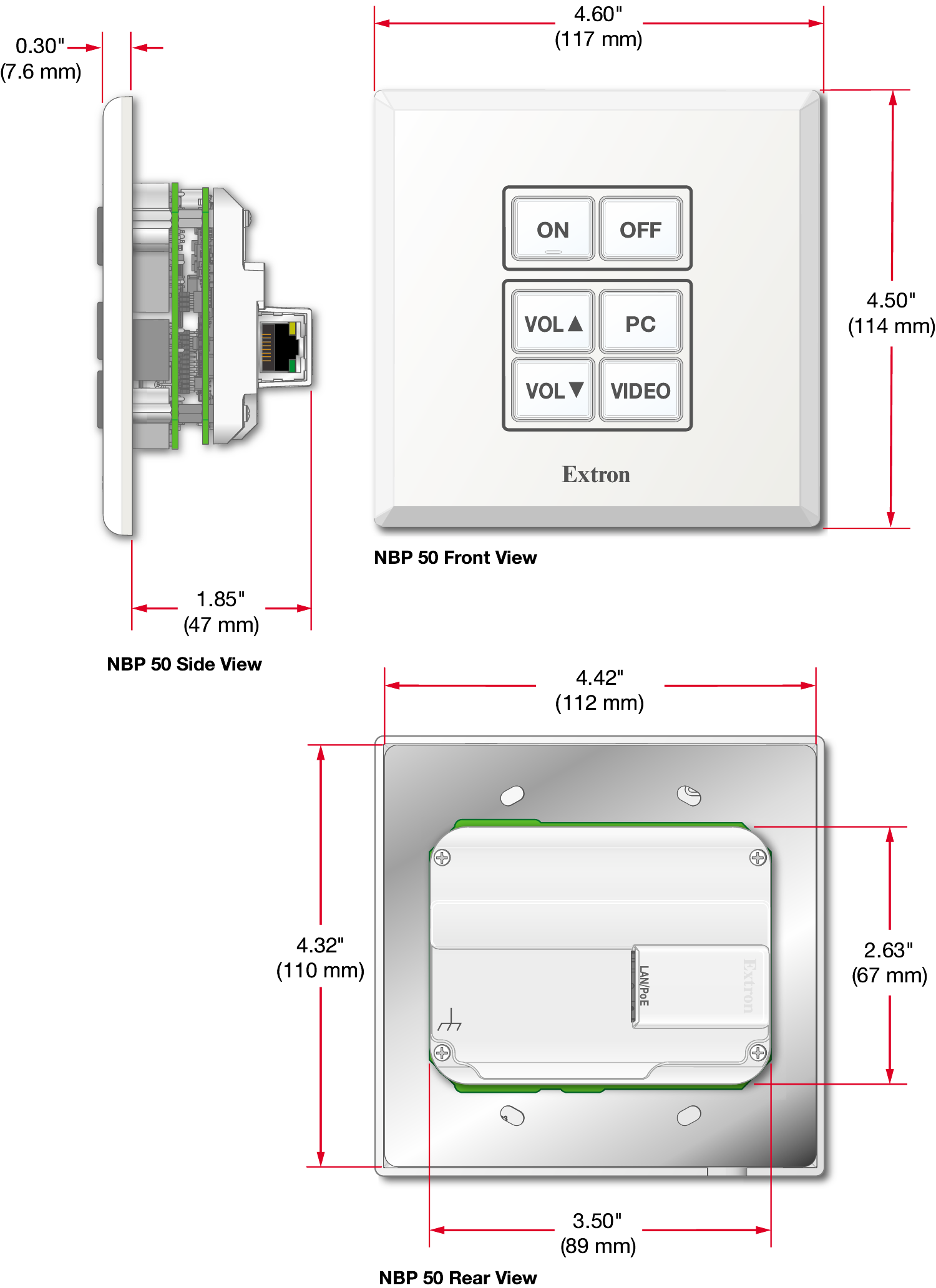

| Faceplate | 4.50" H x 4.60" W x 0.30" D (114 mm H x 117 mm W x 8.6 mm D) |
| Device | 2.63" H x 3.50" W x 1.85" D (67 mm H x 89 mm W x 47 mm D)
(Depth excludes faceplate, buttons, and knob. Fits most 2 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.) |
| |  |
| |  |
| NBP 200 | |
| Faceplate | 4.50" H x 6.42" W x 0.30" D (114 mm H x 163 mm W x 7.6 mm D) |
| Device | 2.73" H x 5.18" W x 1.85" D (69 mm H x 132 mm W x 47 mm D)
(Depth excludes faceplate, buttons, and knob. Fits most 3 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.) |
| |  |
| Product weight | |
| NBP 50 | 0.7 lb (0.3 kg) |
| NBP 100 | 1.2 lb (0.5 kg) |
| NBP 200 | 1.6 lb (0.7 kg) |
| Regulatory compliance | CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI
Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d). |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6250-D5) |
