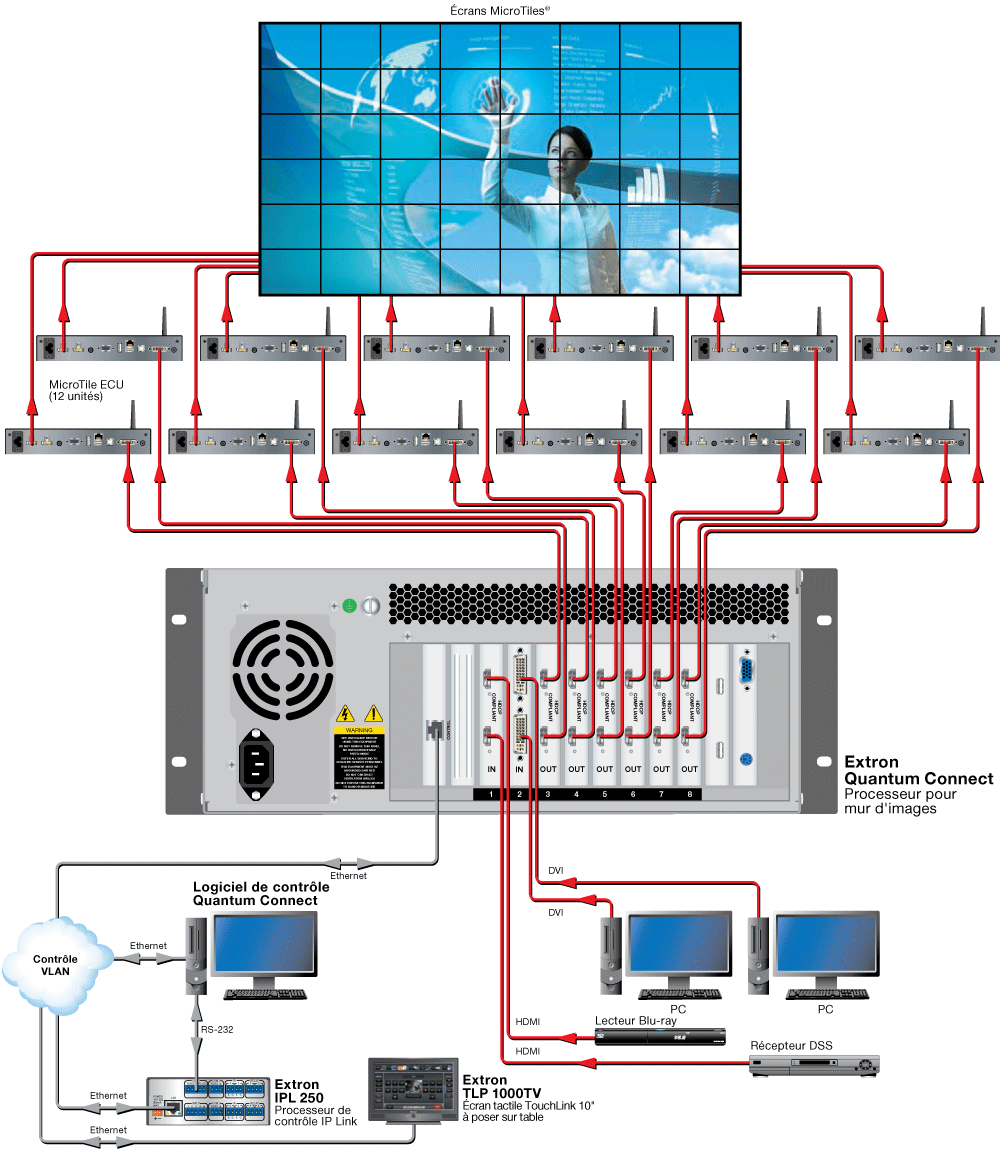

| Quantum® Connect |
| NOTE | The Quantum Connect has eight slots for factory-installed input/output cards. Each slot can accomodate up to 12 S-video or composite video inputs, 2 analog RGB or component video inputs, 2 DVI inputs, 2 HDMI inputs, 2 3G/HD/SD-SDI inputs, 2 RGB or DVI outputs, or 2 HDMI outputs.
The system is configured at the factory at the time of order. The I/O cards are not available separately for upgrades. |
|
|
| Video input — composite or S-video input |
|---|
| Number/signal type | 12 S-video, composite video |
| Connectors | 2 female 26-pin HD (included adapter allows input on 24 female BNC connectors) |
| Nominal level | 1 Vp-p for Y of S-video and for composite video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels | Analog: 0.1 V to 2.0 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz |
| Vertical frequency | 50 Hz, 59.94 Hz |
|
| Video input — RGB or component video input |
|---|
| Number/signal type | 2 analog VGA-WUXGA RGBHV, RGsB, HDTV, component video |
| Connectors | 2 female 15-pin HD |
| Nominal level | 1 Vp-p for Y of component video and for G of RGsB
0.7 Vp-p for RGB and for Pr and Pb of component video |
| Minimum/maximum levels | Analog: 0.3 V to 2.0 Vp-p with no offset |
| Impedance | 75 ohms |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 50 Hz to 75 Hz |
| Resolution range | 640x480 to 1920x1200, NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p |
|
| Video input — DVI input |
|---|
| Number/signal type | 2 digital VGA-WUXGA RGB, single link DVI |
| Connectors | 2 female DVI-I (analog signals are not supported) |
| Horizontal frequency | 31 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 85 Hz |
| Resolution range | 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, or 1080p |
| Formats | RGB digital video |
| Standards | DVI 1.0 |
|
| Video input — HDMI input |
|---|
| NOTE | *Appropriate HDMI to DVI cables or adapters are required for DVI signal input/output. |
|
| Number/signal type | 2 single link HDMI (or DVI*) |
| Connectors | 2 female HDMI type A (analog signals are not supported) |
| Signal Type | 2 Single link HDMI (or DVI*) |
| Digital video | RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI standard) |
| EDID and DDC | Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. Factory or custom EDID tables are user selectable. |
| HDCP | Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards |
| Horizontal frequency | 31 kHz to 100 kHz |
| Vertical frequency | 24 Hz to 85 Hz |
| Resolution range | 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, or 1080p |
| Standards | DVI 1.0, HDMI, HDCP |
| Equalization | Automatic |
|
| Video input — SDI input |
|---|
| Number/signal type | 2 3G/HD/SD-SDI |
| Connectors | 2 female HD-BNC (HD-BNC to female BNC adapters are included.) |
| Data rates | 270 Mbps to 2.97 Gbps |
| Horizontal frequency | 15 kHz to 100 kHz |
| Vertical frequency | 23.98 Hz to 60 Hz |
| Resolution range | 480i, 576i, 720p, 1080i, or 1080p |
| Formats | YCbCr digital component video |
| Return loss | <-15 dB @ 1 MHz to 1.5 GHz |
| Input cable equalization | Automatic for up to -30 dB of cable loss |
| 3G-SDI | 60 meters (200 feet) using Extron RG6 cable
45 meters (150 feet) using Extron RG59 cable |
| HD-SDI | 120 meters (400 feet) using Extron RG6 cable
90 meters (300 feet) using Extron RG59 cable |
| SDI | 150 meters (500 feet) using Extron RG6 cable
120 meters (400 feet) using Extron RG59 cable |
| NOTE | The transmission distance varies depending on the signal resolution and on the type of cable. |
|
| Standards | SMPTE 259M-C, SMPTE 292M, SMPTE 424M |
|
| Video processing — inputs |
|---|
| Maximum data rate | DVI and HDMI inputs: 4.95 Gbps (1.65 Gbps per color)
SDI inputs: 2.97 Gbps |
| Digital sampling | 24 bit, 8 bits per color; 13.5 MHz standard (S-video, composite video),
205 MHz standard (RGB, component video), 165 MHz standard (DVI and HDMI) |
| Colors | 16.78 million |
|
| Video processing — outputs |
|---|
| Maximum data rate | 4.95 Gbps (1.65 Gbps per color) |
| Digital sampling | 24 bit, 8 bits per color, 165 MHz standard |
| Colors | 16.78 million |
|
| Video output — RGB or DVI output |
|---|
| Number/signal type | 2 scaled RGBHV or single link DVI |
| Connectors | 2 female DVI-I (analog and digital signals are both active) |
| Nominal level | 0.7 Vp-p for RGB |
| Minimum/maximum levels | 0.0 V to 1.0 Vp-p |
| Impedance | 75 ohms |
| Vertical frequencies | 50 Hz, 60 Hz |
| Scaled resolution | 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2
HDTV: 720p1,2, 1080p1,2
1 = at 50 Hz, 2 = at 60 Hz |
| Standards | DVI 1.0 |
|
| Video output — HDMI output |
|---|
| Number/signal type | 2 scaled single link HDMI (HDCP compliant) |
| Connectors | 2 female HDMI type A |
| Vertical frequency | 50 Hz, 60 Hz |
| Scaled resolutions | 640x4801,2, 800x6001,2, 848x4801,2, 1024x7681,2, 1152x8701,2, 1280x7681,2, 1280x8001,2, 1280x10241,2, 1360x7681,2, 1366x7681,2, 1440x9001,2, 1400x10501,2, 1408x10501,2, 1600x12001,2, 1680x10501,2, 1920x12001,2
HDTV: 720p1,2, 1080p1,2
1 = at 50 Hz, 2 = at 60 Hz |
| Standards | DVI 1.0, HDMI, HDCP |
|
| Sync |
|---|
| Standards | NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Input type | RGBHV, RGsB, bi-level or tri-level component video |
| Output type | RGBHV |
| Input level | 2.75 V to 5.0 Vp-p for RGBHV
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB |
| Output level | 2.4 Vp-p for RGBHV |
| Input impedance | 2.2k ohms for H and V |
| Output impedance | 2.2k ohms |
| Max. input voltage | 5 Vp-p |
| Polarity | Positive or negative |
|
| Control/remote — processor/decoder/scaler |
|---|
| Ethernet ports | 1 female RJ-45 connector for control, networked |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | IP, TCP |
| Ethernet default settings | Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = not supported |
| Storage | 80 GB (1 IDE drive) |
| Internal operating system | Microsoft® Windows® XP® embedded |
| Program control | Extron Quantum Connect control/configuration software for Windows |
| NOTE | The operating system is hard-coded into the Quantum Connect and Windows updates are not required. The C drive, which contains the operating system, is write protected to prevent unauthorized access. |
|
|
| Control/remote — setup and troubleshooting |
|---|
| Number/signal type | 1 analog VGA-UXGA RGBHV local monitor
2 USB
1 PS/2 mouse and keyboard |
| Connectors | 1 female 15-pin HD
2 USB type A
1 female PS/2 (6-pin mini DIN) (Breakout cable to 2 PS/2 connectors is included.) |
| USB standards | USB 2.0, low speed |
|
| General |
|---|
| Power supply | Internal
Input: 100-240 VAC, 50-60 Hz |
| Power consumption | 300-500 watts (varies with configuration) |
| Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 85%, noncondensing
Operating: +35 to +95 °F (5 to +35 °C) / 10% to 85%, noncondensing |
| Cooling | Fans, front to rear |
| Thermal dissipation | 300-900 BTU/hr (varies with configuration) |
| Mounting | |
| Rack mount | Yes |
| Enclosure type | Metal |
| Enclosure dimensions | 7.0" H x 17.1" W x 19.3" D (4U high, full rack wide)
(17.8 cm H x 43.3 cm W x 49.0 cm D)
(Depth excludes connectors and handles. Width excludes built-in rack ears.) |
| Product weight | Without boards: 36 lbs (16.3 kg)
Fully loaded: 41.5 lbs (18.8 kg) |
| Shipping weight | Without boards: 47 lbs (21 kg)
Fully loaded: 53 lbs (24 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, FCC Class A |
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. |
| Product warranty | 3 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (8.0-071513-D11) |
