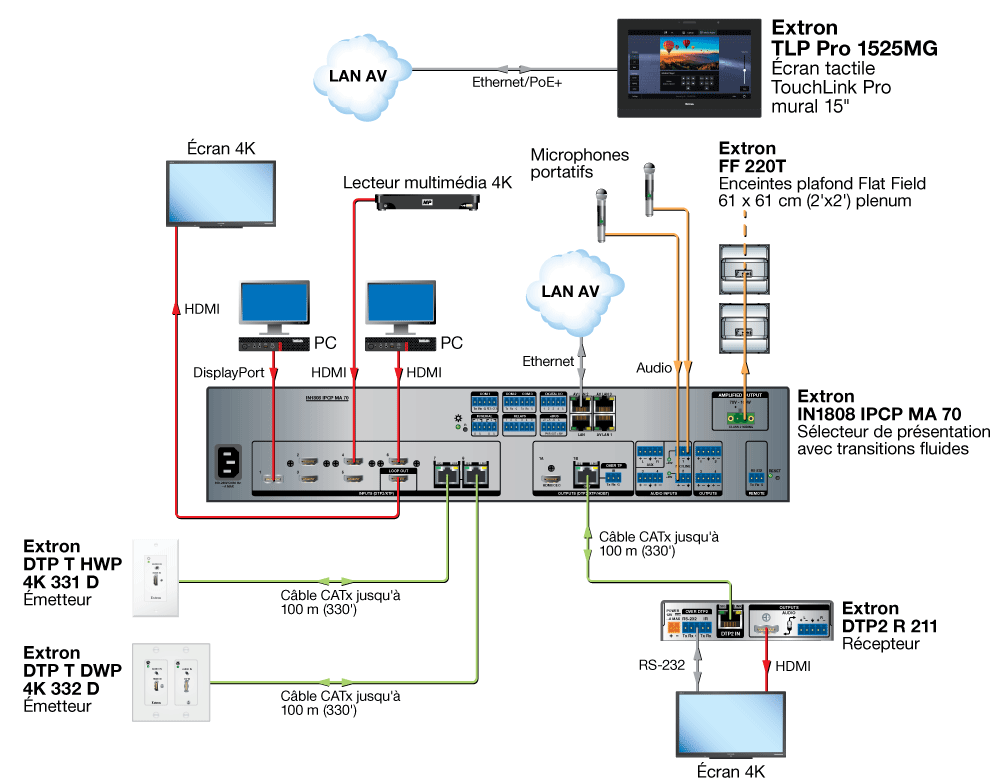

| TLP Pro 1525MG |
|
| Display |
|---|
| Screen type | TFT Active matrix color LCD |
| Size | 15.6" (396 mm), measured diagonally |
| Resolution | 1366x768 (WXGA) |
| Pixel density | 100.45 PPI |
| Aspect ratio | 16:9 |
| Color depth | 24-bit, 16.7M colors |
| Transparency | 8 bit alpha channel |
| Brightness | 340 nits (cd/m2) |
| Contrast | 500:1 |
| Backlight | LED |
| Viewing angle | ±85° horizontal, ±80° vertical |
| Touch screen | Capacitive |
|
| Memory |
|---|
| RAM | 2 GB |
| Storage | 8 GB |
|
| XTP – Interconnection between transmitter and receiver |
|---|
| Termination standard | TIA/EIA T568A or T568B |
| Signal transmission distance | 330' (100m) using CAT 5e/6/7 UTP or STP cable (24 AWG or better) |
| Cable requirements | Solid conductor, 24 AWG or better |
| Cable recommendations | 400 MHz bandwidth, STP (Shielded Twisted Pair) |
|
| Video input |
|---|
| Resolution range | Up to 1080p (HDTV)640x480 @ 60 Hz through 1920x1200 @ 60 Hz
includes 480p, 576p, 720p, 1080p, and 2K |
| NOTE | Interlaced sources are not supported. |
|
| Quantity/type | 1 HDMI (HDCP compliant)
1 XTP® |
| Connectors | 1 female HDMI type A
1 female RJ-45 (shared with Ethernet interface) |
| Horizontal frequency | 18.75 kHz to 75 kHz |
| Vertical frequency | 24 Hz to 75 Hz |
| Standards | DVI 1.0, HDMI 1.4, HDCP 1.4 |
| Audio sampling rate | 48 kHz |
|
| Video processing |
|---|
| HDMI pixel data bit depth | 8, 10, or 12 bits per channel; 165 MHz pixel clock |
| Colors | 1 billion (10 bit processing) |
|
| Ethernet |
|---|
| Connectors | 1 female RJ-45 connector (shared with XTP video input) |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| Software |
|---|
| Configuration software | Global Configurator Plus and Professional, GUI Designer |
| Programming software | ControlScript Programming |
| Control apps | Extron Control |
| Resource management software | GlobalViewer Enterprise |
| Utilities | Toolbelt, Embedded Web page |
|
| Sensors |
|---|
| Motion sensor | On/off |
| Light sensor | Auto/manual |
|
| USB |
|---|
| Quantity/type | 2 high-speed USB 2.0 devices |
| Connectors | 2 USB type A connectors |
| Standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| Data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) |
|
| Audio output – Speaker |
|---|
| Speaker output | 2 Stereo, 90 dB Max. SPL @ 0.1m |
| Frequency response | 400 Hz to 20 kHz, ±5 dB |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit depth | Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit |
| Sampling rate | Up to 192 kHz |
| Audio channels | Mono or stereo |
|
| Audio output – Line level |
|---|
| Quantity/type | 1 stereo, unbalanced |
| Connectors | 1 female 3.5 mm stereo mini jack; tip (L), ring (R), sleeve (GND) |
| Impedance | 50 ohms unbalanced |
| Gain error | ±0.1 dB channel to channel |
| Nominal level | -10 dBV (316 mVrms) |
| Maximum level (Hi-Z) | >+8.2 dBV unbalanced at 1% THD+N |
| Maximum level (600 ohm) | >7.1 dBm unbalanced at 1% THD+N |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (802.3at, class 4) |
| Power consumption — Power injector (PI 140) with XTP |
| Device | 20.9 watts |
| Device and power injector | 24.7 watts |
| Auxiliary power output | |
| USB | 5 VDC, up to 275 mA on a single port: up to 275 mA total on both USB ports |
| Ambient temperature/humidity | Storage: -4 to +140 °F (-20 to +60 °C) / 5% to 90%, noncondensing
Operating: +32 to +140 °F (0 to +60 °C) / 5% to 90%, noncondensing |
| Cooling | Convection, vents on top, bottom, and rear |
| Thermal dissipation — Power injector (PI 140) |
| Device | 66.5 BTU/hr |
| Device and power injector | 79.4 BTU/hr |
| Mounting | |
| Rack mount | With optional kit |
| Furniture or wall mount | With included hardware or optional accessories |
| Enclosure type | Plastic |
| |  |
| Enclosure dimensions | |
| Faceplate | 11.02" H x 16.06" W x 1.13" D
(280 mm H x 408 mm W x 29 mm D) |
| Enclosure | 5.59" H x 8.81" W x 1.60" D
(142 mm H x 224 mm W x 41 mm D) |
| Product weight | 7.00 lbs (3.18 kg) |
| Regulatory compliance | BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, and WEEE |
| Product warranty | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
