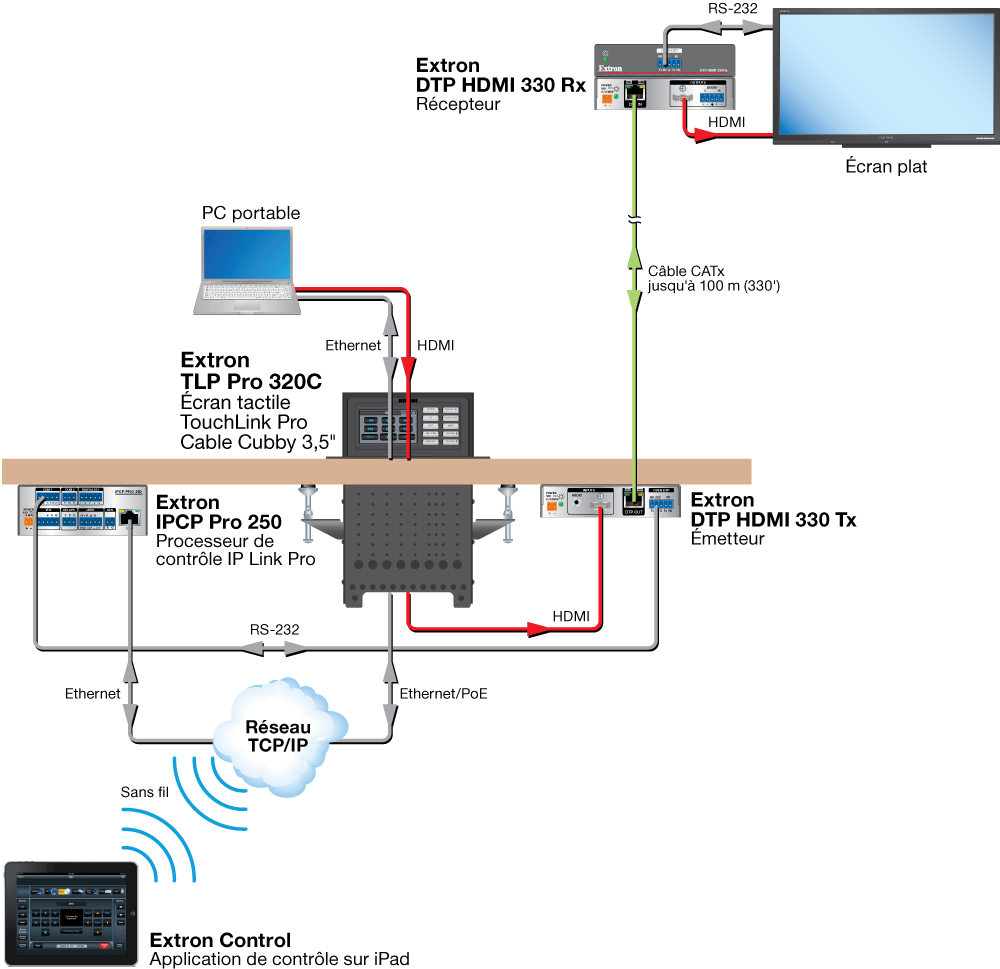

| TLP Pro 320C |
|
| Display |
|---|
| Screen type | Active matrix TFT color display |
| Size | 3.5" (8.9 cm), measured diagonally |
| Resolution | 320x240 |
| Dot/pixel pitch | 114 dpi |
| Aspect ratio | Standard |
| Color depth | 256k colors |
| Transparency | 8 bit alpha channel |
| Brightness | 225 nits (cd/m2) |
| Contrast | 80:1 |
| Backlight | LED |
| Viewing angle | ±50° horizontal, ±50° vertical |
| Touch screen | Resistive |
|
| Memory |
|---|
| SDRAM | 512 MB |
| Flash | 512 MB |
|
| Control — Ethernet interface |
|---|
| Ethernet control/communications port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100Base-T, half/full duplex with autodetect |
| Ethernet protocol | DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS: 127.0.0.1 |
| Software tools | Extron Global Configurator Plus and Professional
Extron GUI Designer |
|
| Control — touchpanel |
|---|
| Lid sensor | Open/closed |
| Light sensor | On/off |
| External buttons | 10 backlit, customizable |
|
| Audio output |
|---|
| Speaker output | 1 mono, 89 dB SPL, 0.1 watt, 0.1 m, half space |
| Frequency response | 750 Hz to 20 kHz, ±5 dB |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit Depth | Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit |
| Sampling rate | 2 kHz to 192 kHz |
| Audio channels | Mono or stereo |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | 12 VDC
or Power over Ethernet (PoE 802.3af, class 2) |
| Power consumption — Power injector (XTP PI 100) |
| Device | 5.2 watts |
| Device and power injector | 7.2 watts |
| Power consumption — 12 VDC power supply (PS 1210C) |
| Device | 3.5 watts |
| Device and power supply | 4.6 watts |
| Ambient temperature/humidity | Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, no vents |
| Thermal dissipation — Power injector (XTP PI 100) |
| Device | 17.5 BTU/hr |
| Device and power injector | 24.5 BTU/hr |
| Thermal dissipation — 12 VDC power supply (PS 1210C) |
| Device | 11.9 BTU/hr |
| Device and power supply | 15.5 BTU/hr |
| Mounting | |
| Furniture mount | With included hardware |
| Min./max. table thickness | 0.375" to 2.00" (0.95 cm to 5.08 cm) |
| Enclosure type | metal |
| |  |
| Enclosure dimensions | |
| ATTENTION | Use the appropriate metal Extron routing template or refer to the surface cutout dimensions here before cutting a hole in the furniture or other surface. Pay special attention to the direction the unit will face; the unit's connector access side is underlined. Extron is not responsible for miscut mounting holes. |
|
| Top plate (outer rim) | 8.15" W x 6.65" D
(20.70 cm W x 16.89 cm) |
| Surface cutout (inside rim) | 7.50" W x 6.00" D
(19.05 cm W x 15.24 cm) |
| Box (under surface) | 6.69" H x 10.87" W (with clamps) x 5.46" D
(16.99 cm H x 27.61 cm W (with clamps) x 13.87 cm D) |
| |  |
| Product weight | 4.58 lbs (2.08 kg) |
| Shipping weight | |
| Device | 7 lbs (3 kg) |
| Device and power module | 9 lbs (4 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | |
| Safety | CE, c-UL, UL |
| EMI/EMC | CE, C-tick,FCC Class A, ICES, VCCI |
| Environmental | Complies with the appropriate requirements of RoHS and WEEE. |
| Product warranty | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (8.1-051515-D4) |
