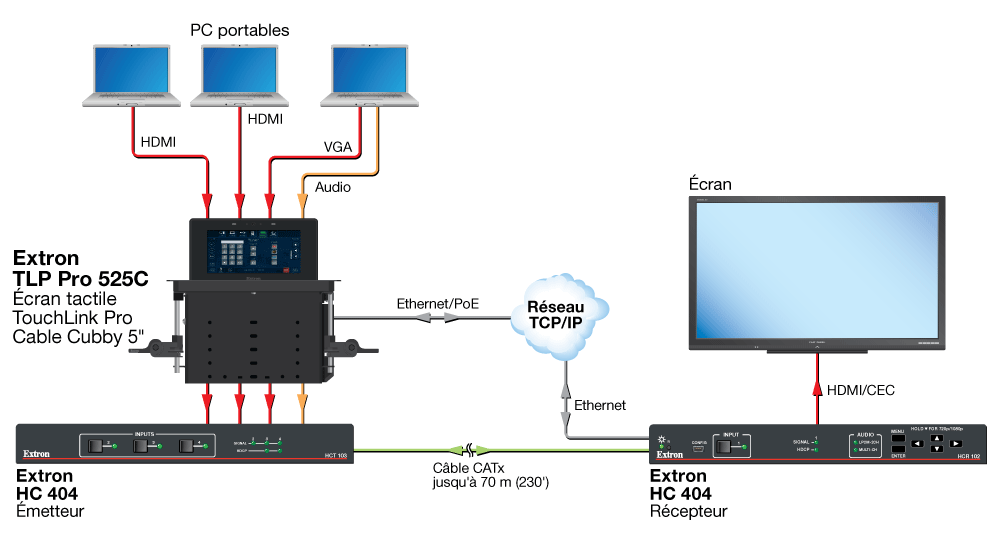

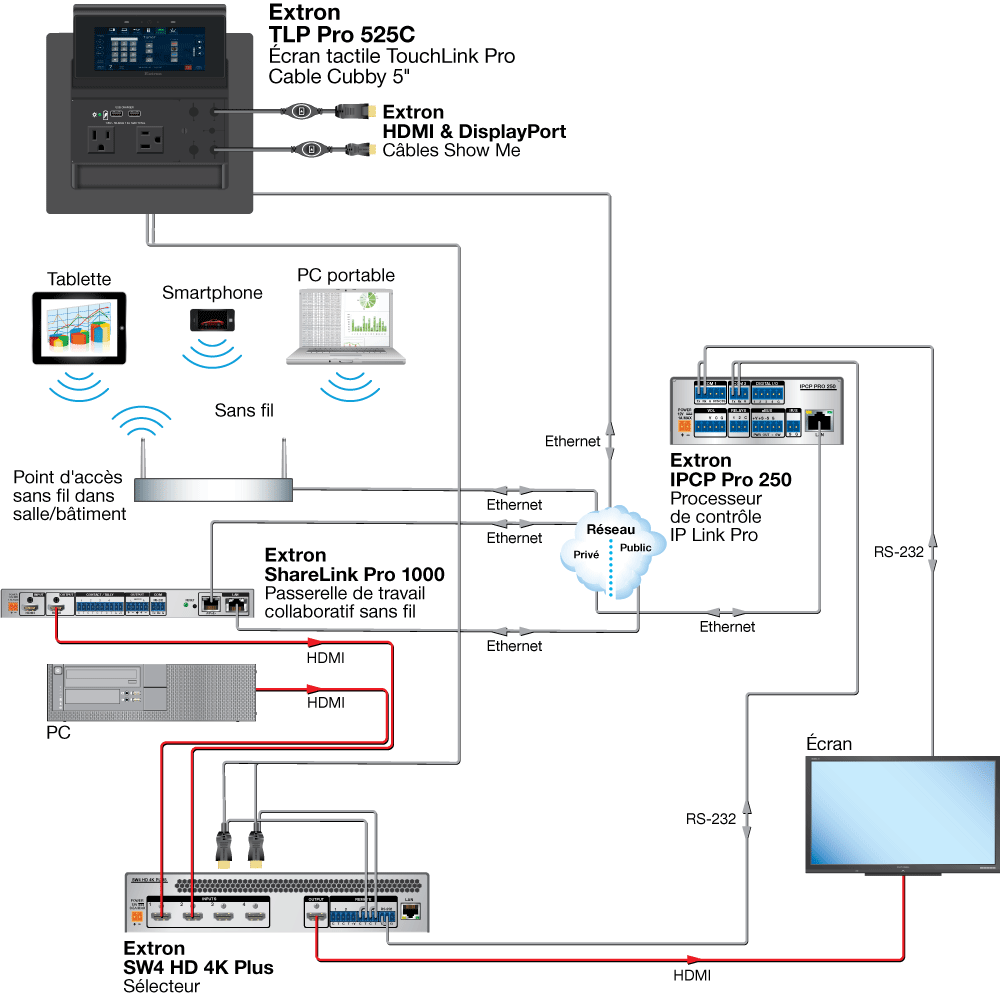

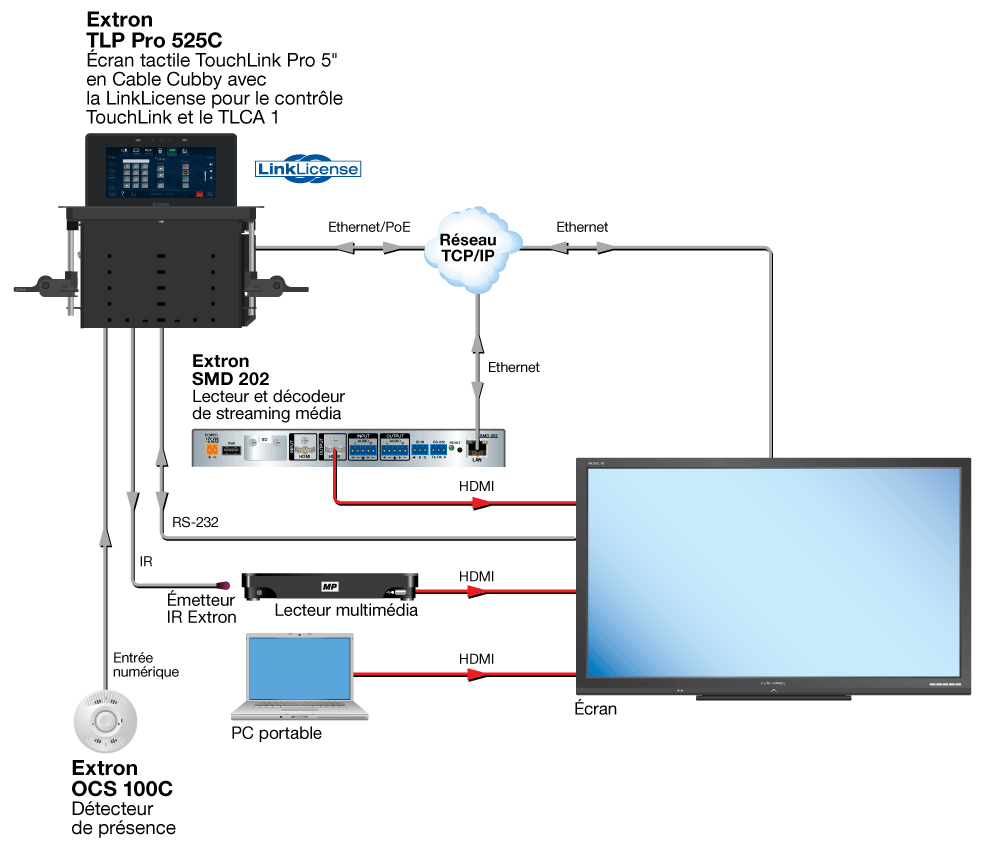

| TLP Pro 525C Series |
|
| Display |
|---|
| Screen type | TFT Active matrix color LCD |
| Size | 5" (127 mm), measured diagonally |
| Resolution | 800x480 (WVGA) |
| Pixel density | 186.6 PPI |
| Aspect ratio | 5:3 |
| Color depth | 24 bit, 16.7 million colors |
| Transparency | 8 bit |
| Brightness | 850 nits (cd/m2) |
| Contrast | 700:1 |
| Backlight | LED |
| Viewing angle | ±70° horizontal, ±70° vertical |
| Touch screen | Capacitive |
|
| Memory |
|---|
| RAM | 2 GB |
| Storage | 8 GB |
|
| Ethernet |
|---|
| Connectors | 1 female RJ-45 connector |
| Data rate | 10/100/1000Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP |
| Default settings | Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1 |
|
| Software |
|---|
| Configuration software | Global Configurator Plus and Professional, GUI Designer |
| Programming software | ControlScript Programing |
| Control apps | Extron Control |
| Resource management software | GlobalViewer Enterprise |
| Utilities | Toolbelt, Embedded web page |
|
| Sensors |
|---|
| Motion sensor | On/off |
| Light sensor | Auto/manual |
| Lid switch | Open/closed |
|
| USB |
|---|
| Quantity/type | 1 high-speed USB 2.0 device |
| Connectors | 1 USB type A connector |
| USB standards | USB 2.0, USB 1.1, USB 1.0 compatible |
| USB data rates | Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) |
|
| Audio output |
|---|
| Speaker output | 1 mono, 89 dB Max. SPL @ 0.1 m |
| Frequency response | 750 Hz to 20 kHz, ±5 dB |
| Playback format(s) | |
| Container format | WAV (Microsoft RIFF) |
| Encoding | LPCM (uncompressed) |
| Bit depth | Unsigned 8-bit
Signed 16-bit
Signed 24-bit
Signed 32-bit |
| Sampling rate | up to 192 kHz |
| Audio channels | mono or stereo |
|
| General |
|---|
| Power supply | Not included |
| Power input requirements | Power over Ethernet (PoE 802.3af, class 3) |
| Power consumption — Power injector (XTP PI 100) |
| Device | 6.6 watts |
| Device and power injector | 9.2 watts |
| Auxiliary power output | |
| USB | 5 VDC, 275 mA |
| Ambient temperature/humidity | Storage: -4 to +140 °F (-20 to +60°C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection |
| Thermal dissipation — Power injector (XTP PI 100) |
| Device | 17.9 BTU/hr |
| Device and power injector | 26.7 BTU/hr |
| Mounting | Furniture mount |
| Enclosure type | Metal |
| |  |
| Enclosure dimensions | |
| ATTENTION | Use the appropriate metal Extron routing template or refer to the surface cutout dimensions here before cutting a hole in the furniture or other surface. Pay special attention to the direction the unit will face; the unit's connector access side is underlined. Extron is not responsible for miscut mounting holes. |
|
| Top plate (outer rim) | 8.04" W x 7.04" D
(204 mm W x 179 mm D) |
| Surface cutout (inside rim) | 7.50" W x 6.00" D
(191 mm W x 152 mm D) |
| Box (under surface) | 4.70" H x 11.53" W (front/rear of unit) x 5.90" D with clamps
(119 mm H x 293 mm W x 150 mm D with clamps) |
| |  |
| Product weight | 4.97 lbs (2.26 kg) |
| Regulatory compliance | BIS, CE, C-Tick, c-UL,FCC Class B, ICES, NOM, RoHS, UL, VCCI, WEEE |
| Product warranty | 3 years parts and labor; touchpanel display and overlay components are covered for 1 year |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
| (6239-D6) |
