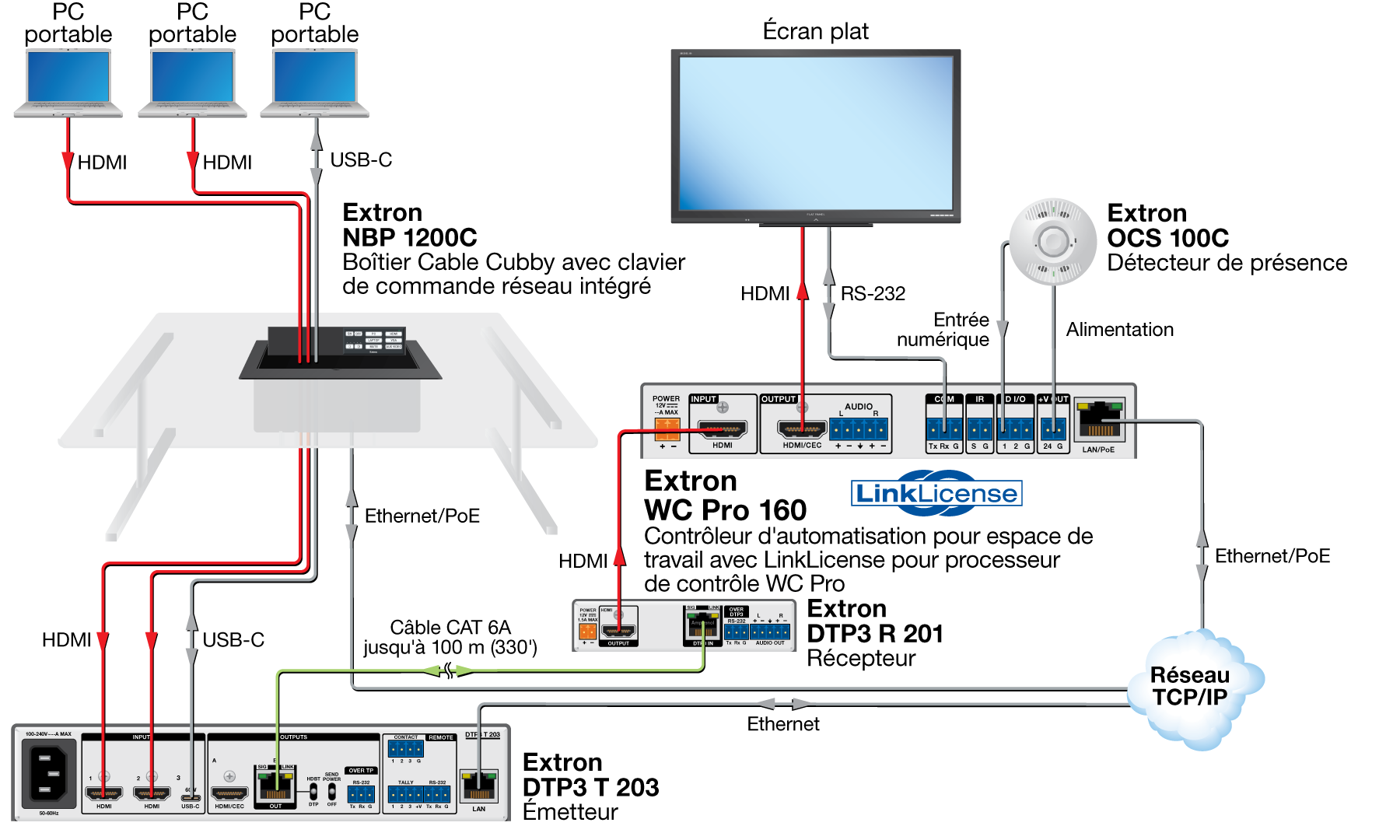

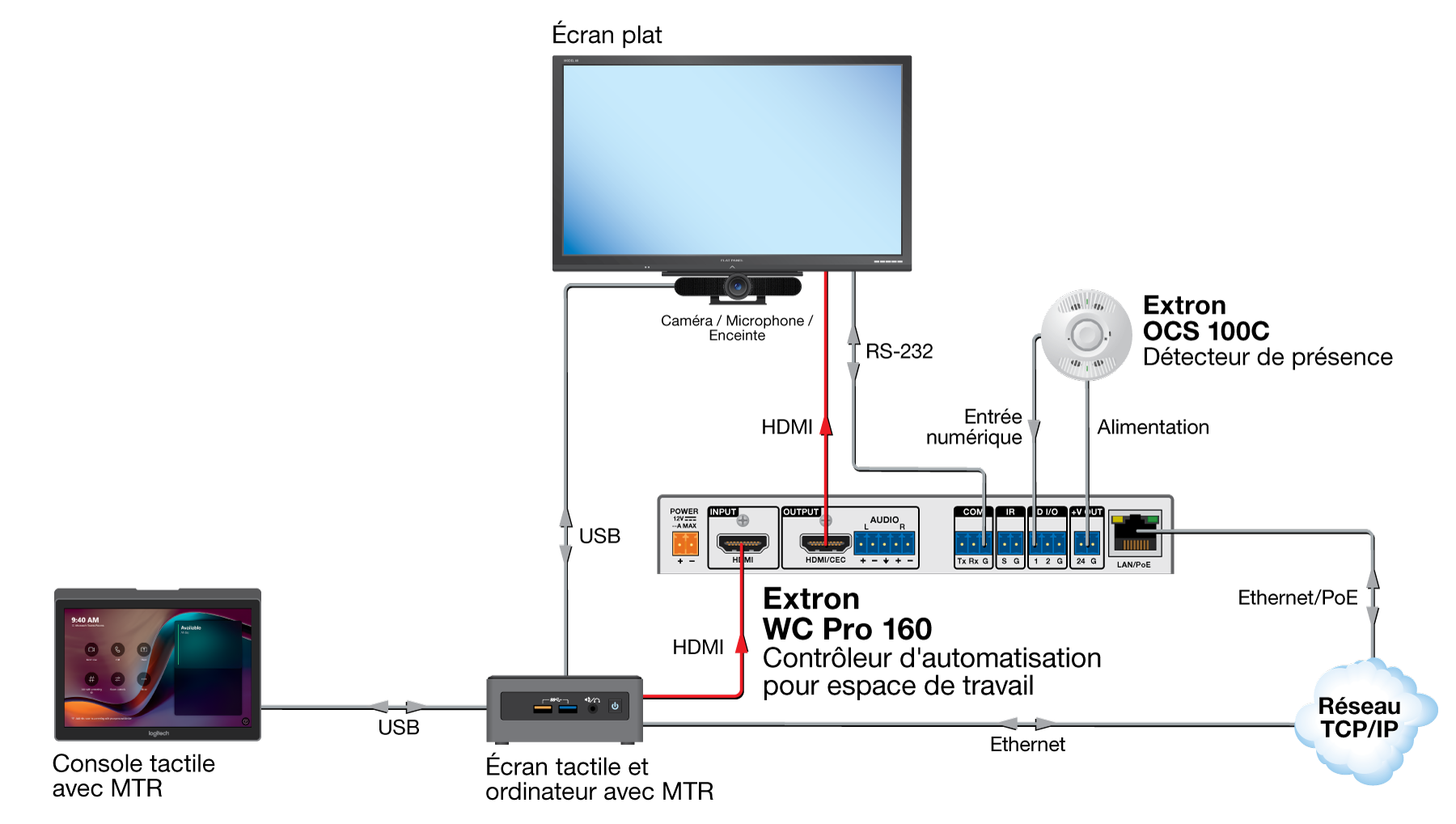

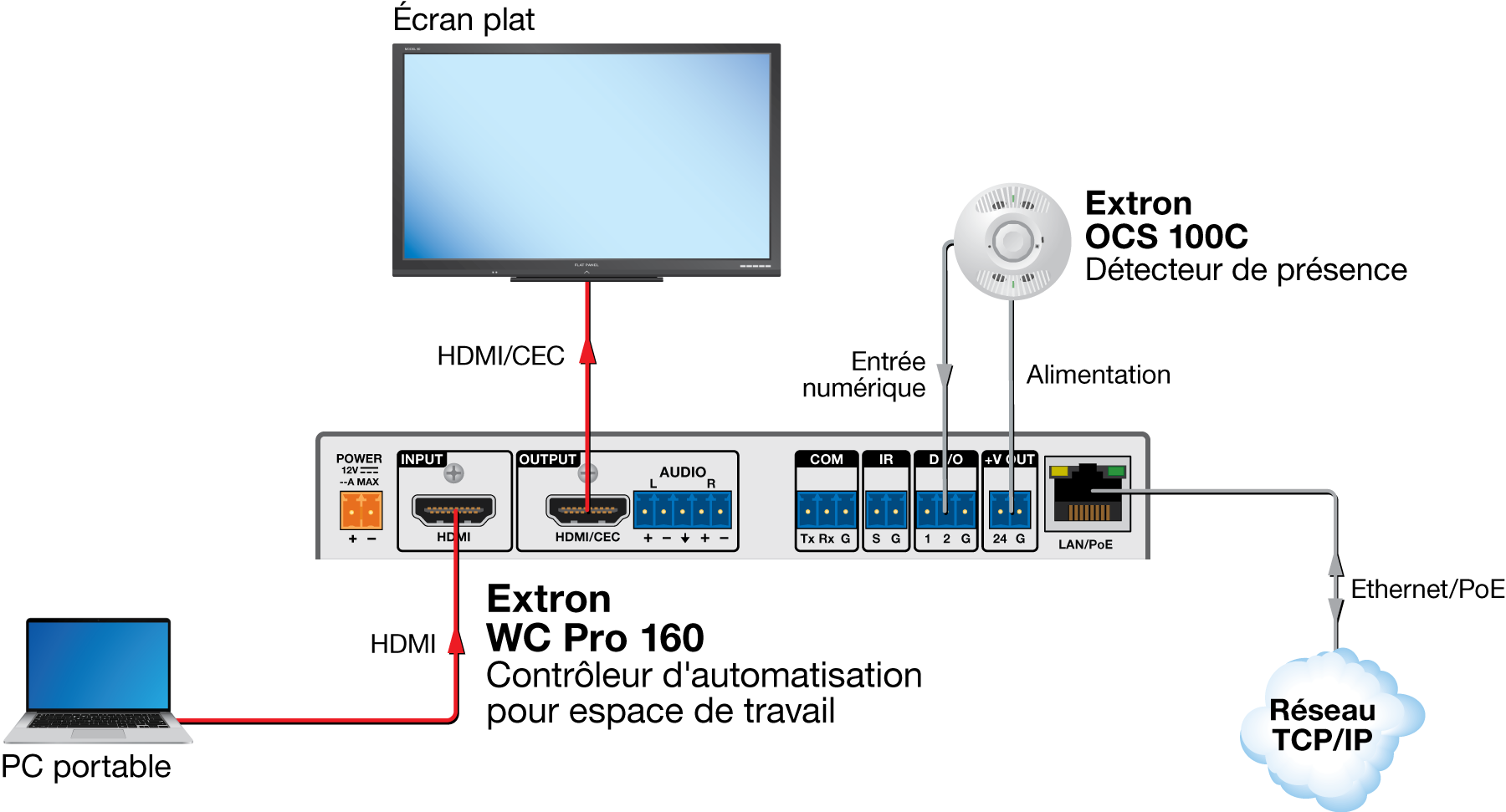

| WC PRO 160 |
|
 specification |
|---|
| Max. 4K Capabilities |
| Resolution |
Refresh Rate |
Chroma Sampling |
Max. Bit Depth per Color |
| 4096x2160 |
60 Hz |
4:4:4 |
8 bit |
| 3840x2160 |
60 Hz |
| 3840x2160 |
30 Hz |
| 4096x2160 |
30 Hz |
|
| Frame rate1 | 24, 25, 30, 50, or 60 fps |
| Chroma sampling1 | 4:4:4 |
| Color bit depth1 | 8 bits per color (24 bits total, RGB) |
| Signal Type | HDMI 2.0, HDCP 2.3 |
| Max. video data rate | 18 Gbps (6 Gbps per color) |
| NOTE | 1Subject to the maximum data rate limit. Use our calculator (www.extron.com/8Kdatarate) to determine video parameters supported by this data rate. |
|
|
| Memory |
|---|
| SDRAM | 1 GB |
| Flash | 8 GB |
|
| Software and control options |
|---|
| Configuration software | Global Configurator Plus and Professional, embedded web page, Product Configuration Software |
| Programming software | ControlScript® and Deployment Utility and ControlScript extension for VS code |
| Utilities | Toolbelt, embedded web page |
| Resource management software | GlobalViewer Enterprise |
| Control apps | Extron control |
|
| Hardware user interface |
|---|
| Hardware | TouchLink Pro touchpanels or network button panels |
|
| Video |
|---|
| HDMI input | 1 female HDMI type A |
| HDMI input resolutions | Up to 4K (4096x2160) @ 60 Hz with 24-bit color (8 bits per color) and 4:4:4 color sampling |
| HDMI output | 1 female HDMI type A |
|
| Serial control |
|---|
| Number/signal type | 1 bidirectional RS-232 |
| Connector | (1) 3.5 mm direct insertion captive screw connector, 3 pole |
| Baud rate and protocol | 300 to 115200 baud (9600 = default)
8 (default) or 7 data bits
1 (default) or 2 stop bits
No parity (default), or even or odd parity |
| NOTE | Supports software flow control. Default = no flow control. |
|
| Pin configuration | |
| Serial, 5-pole captive screw | RS-232: 1 = Tx, 2 = Rx, 3 = Gnd |
|
| IR control |
|---|
| Number/signal type | 1 programmable TTL level (0 to 5 V) infrared (carrier and nonn-carrier), up to 300 kHz |
| Connector | (1) 3.5 mm direct insertion captive screw connector, 2 pole |
| Pin configuration | 1 = signal, 2 = Gnd |
| IR output carrier frequency | 30 kHz to 300 kHz |
|
| Digital inputs and outputs |
|---|
| Number/signal type | 2 digital inputs/outputs (configurable) |
| Connector | (1) 3.5 mm captive screw, 3 pole |
| Digital inputs | |
| Input voltage range | 0 to 24 VDC |
| Input impedance | ≥10k ohms typical |
| Programmable pullup | 2k ohms to +5 VDC |
| Threshold low to high | >2.8 VDC |
| Threshold high to low | <2.0 VDC |
| Digital outputs | 250 mA sink from 24 VDC max. |
| Pin configuration | 1, 2, G, where 1,2 = digital input and outputs 1 and 2, G = Gnd |
|
| Audio output |
|---|
| Number/signal type | 1 analog line level stereo, balanced or unbalanced (variable)
1 digital, embedded in HDMI (fixed) |
| Connectors | (1) 5 pole 3.5 mm captive screw
1 female HDMI |
| Impedance | 50 ohms unbalanced, 100 ohms balanced |
| Gain error | ±0.5 dB, channel to channel |
| Maximum level (Hi-Z) | 15 dBu, balanced
9 dBu, unbalanced |
| Output volume range | 0 to 100% in 1% steps |
|
| +V output |
|---|
| +24 V output port | (1) 3.5 mm captive screw connector, 2 pole |
| Output | +24 VDC, 75 mA, fixed, non-switchable |
|
| Ethernet control |
|---|
| Network interface controllers (NICs) | 1 |
| Connector | 1 female RJ-45 |
| Data rate | 10/100Base-T, half/full duplex with autodetect |
| Protocols | DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| Default settings | |
| Link speed and duplex level | Autodetected |
| IP address | 192.168.254.250 |
| Subnet mask | 255.255.255.0 |
| Gateway IP address | 0.0.0.0 |
| DHCP | Off |
| DNS | 127.0.0.1 |
|
| General |
|---|
| Power supply (sold separately) | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power input | Power over Ethernet (PoE) (complies with PoE 802.3af, class 3) |
| Power Consumption – Power over Ethernet (PoE) | |
| Device | 9.6 watts |
| Device and power supply | 12.6 watts |
| Power Consumption – 12 VDC Power Supply | |
| Device | 7.6 watts |
| Device and power supply | 8.8 watts |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents on top and sides |
| Thermal dissipation – Power over Ethernet (PoE) | |
| Device | 25.7 BTU/hr |
| Device and power supply | 35.7 BTU/hr |
| Thermal dissipation – 12 VDC Power Supply | |
| Device | 18.9 BTU/hr |
| Device and power supply | 23.0 watts |
| Mounting | |
| Rack mount | Yes, with optional 1U rack shelf |
| Furniture mount | Yes, with included MBU 125 under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 6.5" W x 3.0" D
(25 mm H x 165 mm W x 76 mm D) |
| Product weight | 0.5 lbs (0.23 kg) |
| Regulatory compliance | CE, c-UL, UL, C-tick, FCC Class A, ICES, RoHs, WEEE
UL Listed for use in plenum air handling spaces
Meets UL 2043 for heat and smoke release. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE | All nominal levels are at ±10%. |
|
| NOTE | Specifications are subject to change without notice. |
|
