XPA U 1004

Amplificateurs basse et haute impédance à quatre canaux
100 W par canal

Caractéristiques principales

Puissance de sortie 100 W rms par canal à 8 Ω, 4 Ω ou 70/100 V
Répond aux critères du niveau 3 d'Ecofficient^®
Mise en veille automatique économisant de l'énergie
InstaWake™ sort du mode de mise en veille automatique en moins de 100 millisecondes
Refroidi par convection, pas de ventilateur - Possibilité de superposition d'unités sans conserver d'espace pour la ventilation
Quatre canaux dans un boîtier 1U, demi-rack - Matériel de montage en rack simple ou double fourni
Toutes les caractéristiques

XPA U 1004 Four Channel 100 watt Amplifier Family

XPA U 1004 - Four Channels, 100 watts - 8 or 4 ohms

XPA U 1004-70V - Four Channels, 100 watts - 70 volts

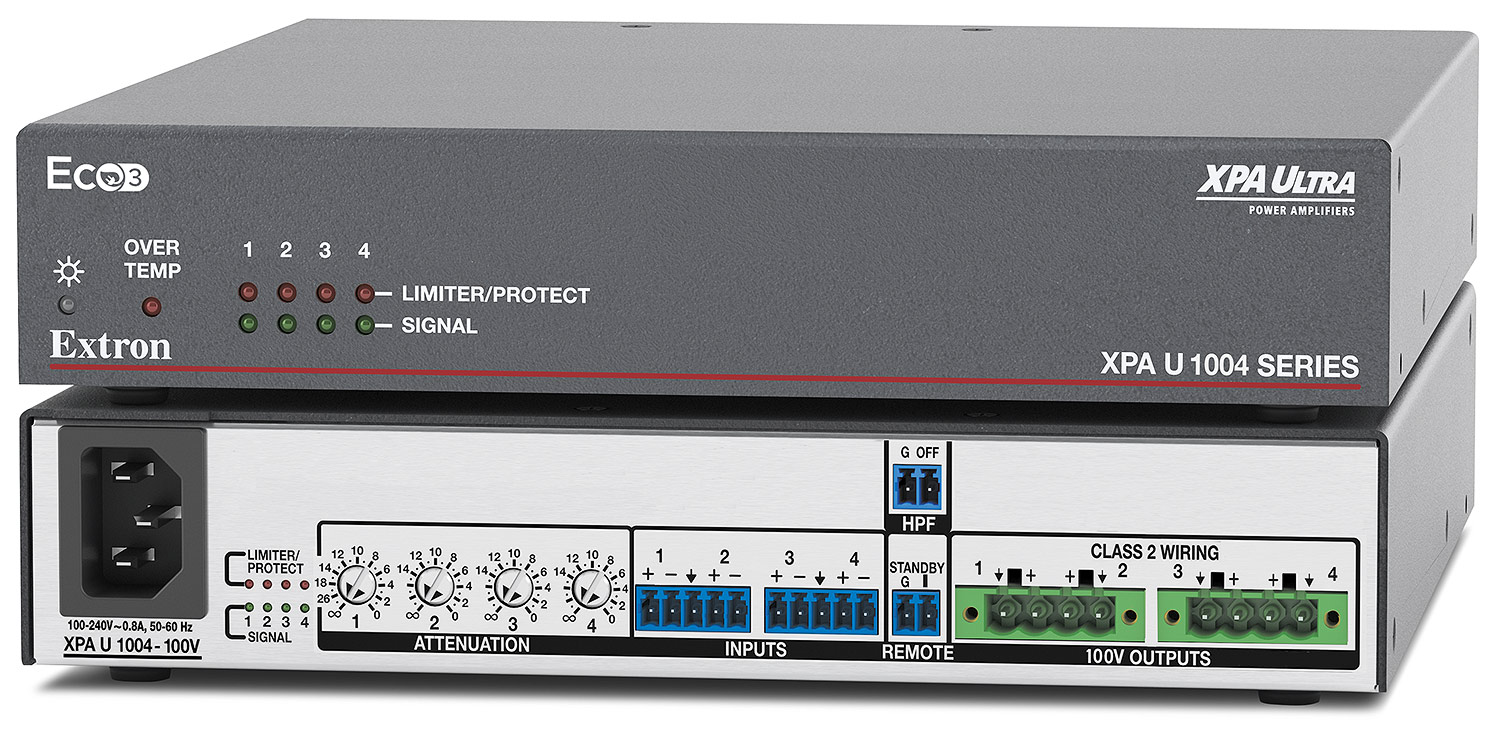

XPA U 1004-100V - Four Channels, 100 watts - 100 volts

XPA U 1004 with Optional Flexible Conduit Adapter Kit (70-228-02)

Previous Next

Galerie d'images

Aperçu interactif

Analyse du produit

Descriptions pour appel d'offres

Études de cas

Outil de sélection d'amplificateurs

Avec ce nouvel outil, vous pouvez désormais rechercher des modèles d'amplificateurs par caractéristique

Calculateurs audio

Vue d'ensemble
Vidéo
Description
Caractéristiques techniques
Schéma
Schéma des panneaux
Téléchargements

Vue d'ensemble

Le XPA U 1004 Extron est un amplificateur de puissance audio Ecofficient niveau 3 qui délivre quatre canaux de 100 W dans un boîtier plenum 1U, refroidi par convection, occupant un demi-rack et comprenant un matériel de montage en rack. Le XPA U 1004 délivre 100 W dans 8 Ω ou 4 Ω tandis que le XPA U 1004-70V délivre 100 W dans des systèmes 70 V et le XPA U 1004-100V délivre 100 W dans des systèmes 100 V. La gamme XPA U 1004 offre une densité des canaux incomparable et ne mobilise pas l'espace en rack généralement nécessaire pour la ventilation. L'unité offre un design avancé de classe D haute performance avec un système de correction du facteur de puissance, un courant d'appel très faible, une mise en veille automatique déverrouillable avec sortie de veille rapide, et notre technologie brevetée CDRS (Class D Ripple Suppression).

Vidéo

Description

Caractéristiques techniques

Schéma

Schéma des panneaux

Téléchargements

Produits affichés récemment

XPA U 1004

Quantum Ultra Connect

FOX3 Matrix 40x

FOX3 T 101

MKP 1200

XPA U 1004

Description pour appel d'offres

Choisissez une référence :

Select a Part Number:

Copier le texte Copié Une erreur est survenue. Veuillez réessayer plus tard.

XPA U 1004

Provide a compact, energy efficient audio amplifier with low thermal dissipation that shall support four analog inputs and four amplified outputs with 100 watts rms per channel.
1. Compact stereo amplifier with 100 watts rms power output per channel and Ecofficient Level 3 qualification
  1. Input Requirements
    1. Shall support four, balanced or unbalanced line level signals on two 5-pole, 3.5 mm captive screw connectors
    2. Shall support wiring of a mono source to adjacent odd/even input pairs for bridged output operation
  2. Output Requirements
    1. Shall support four speaker level signals on two 4-pole, 5 mm screw-lock captive screw connector
    2. Shall provide 100 watts rms per channel into 4 or 8 ohms measured at 1 kHz with 0.1% THD
    3. Shall provide a signal-to-noise ratio of 100 dB measured from 20 Hz to 20 kHz, unweighted
    4. Shall support bridging of adjacent odd/even output pairs to provide 200 watts rms output power into 8 ohms
    5. Shall support a minimum load impedance of 8 ohms during bridged operation
    6. Shall provide a THD+N measurement of 0.1% measured at 1 kHz, at 3 dB below clipping
    7. Shall provide damping factor of greater than 100 at 8 ohms
  3. Amplifier Requirements
    1. Shall utilize an efficient Class D amplifier design
    2. Shall provide Class D Ripple Suppression technology
    3. Shall be convection cooled and operate without fans or vents
    4. Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
    5. Shall provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
    6. Shall provide power factor correction technology to remove harmonic content on the AC power line
  4. Power Requirements
    1. Shall draw 68.3 watts during typical (1/8 power) operation with all output channels driven with 4 ohm loads
    2. Shall draw 64.9 watts during typical (1/8 power) operation with all output channels driven with 8 ohm loads
    3. Shall draw 7.2 watts during quiescent operation
    4. Shall provide a low power standby mode
      1. Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
      2. Shall draw less than 1 watt while in standby mode
      3. Shall return to full power status in less than 100 milliseconds upon signal detection while in standby mode
      4. Shall feature an input signal detection threshold of -65 dBu, +/- 3 dB on a balanced input to deactivate standby mode
    5. Shall meet Ecofficient Level 3 requirements
    6. Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
  5. Control Requirements
    1. Shall support remote standby control on one 2-pole, 3.5 mm captive screw connector
  6. Front Panel Requirements
    1. Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
    2. Shall provide an LED for indication of the enclosure temperature exceeding the optimal value
    3. Shall provide green LEDs for input signal presence indication
    4. Shall provide red LEDs for indication of clip warning and protection circuit activation
  7. Rear Panel Requirements
    1. Shall provide four inputs on two 5-pole, 3.5 mm captive screw connectors
    2. Shall provide four outputs on two 4-pole, 5 mm screw-lock captive screw connectors
      1. Shall support 22 AWG to 12 AWG speaker cables
    3. Shall provide remote standby control port on one 2-pole, 3.5 mm captive screw connector that supports standby defeat with the insertion of included 10k ohm resistor
    4. Shall provide recessed, detented potentiometers with laser etched position indicators for attenuation adjustment
    5. Shall provide green LEDs for input signal presence indication
    6. Shall provide red LEDs for indication of clip warning and protection circuit activation
  8. General Requirements
    1. Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure
    2. Shall meet regulatory compliances
      1. Shall meet safety compliances under CE, CEC, CISPR 22 Class B, C-tick, CUL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
      2. Shall be UL listed for plenum airspaces and meet UL 2043 compliance for heat and smoke release, when used with an optional Extron Flexible Conduit Adapter Kit
      3. Shall meet UL 60065, IEC 60065, and BSEN 60065 for safety
      4. Shall meet EMI/EMC compliances under CE, CISPR 22 Class B, C-tick, FCC Class B, ICES, and VCCI Class B
      5. Shall comply with appropriate requirements of EU code of conduct, RoHS, and WEEE
    3. Shall provide three year parts and labor product warranty
    4. Shall provide seven year parts and labor power supply warranty
2. Approved device shall be the Extron XPA U 1004, part number 60-1760-01; no alternates or equals.

XPA U 1004

Provide a compact, energy efficient audio amplifier with low thermal dissipation that shall support four analog inputs and four amplified outputs with 100 watts rms per channel.
1. Compact stereo amplifier with 100 watts rms power output per channel and Ecofficient Level 3 qualification
  1. Input Requirements
    1. Shall support four, balanced or unbalanced line level signals on two 5-pole, 3.5 mm captive screw connectors
    2. Shall support wiring of a mono source to adjacent odd/even input pairs for bridged output operation
  2. Output Requirements
    1. Shall support four speaker level signals on two 4-pole, 5 mm screw-lock captive screw connector
    2. Shall provide 100 watts rms per channel into 4 or 8 ohms measured at 1 kHz with 0.1% THD
    3. Shall provide a signal-to-noise ratio of 100 dB measured from 20 Hz to 20 kHz, unweighted
    4. Shall support bridging of adjacent odd/even output pairs to provide 200 watts rms output power into 8 ohms
    5. Shall support a minimum load impedance of 8 ohms during bridged operation
    6. Shall provide a THD+N measurement of 0.1% measured at 1 kHz, at 3 dB below clipping
    7. Shall provide damping factor of greater than 100 at 8 ohms
  3. Amplifier Requirements
    1. Shall utilize an efficient Class D amplifier design
    2. Shall provide Class D Ripple Suppression technology
    3. Shall be convection cooled and operate without fans or vents
    4. Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
    5. Shall provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
    6. Shall provide power factor correction technology to remove harmonic content on the AC power line
  4. Power Requirements
    1. Shall draw 68.3 watts during typical (1/8 power) operation with all output channels driven with 4 ohm loads
    2. Shall draw 64.9 watts during typical (1/8 power) operation with all output channels driven with 8 ohm loads
    3. Shall draw 7.2 watts during quiescent operation
    4. Shall provide a low power standby mode
      1. Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
      2. Shall draw less than 1 watt while in standby mode
      3. Shall return to full power status in less than 100 milliseconds upon signal detection while in standby mode
      4. Shall feature an input signal detection threshold of -65 dBu, +/- 3 dB on a balanced input to deactivate standby mode
    5. Shall meet Ecofficient Level 3 requirements
    6. Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
  5. Control Requirements
    1. Shall support remote standby control on one 2-pole, 3.5 mm captive screw connector
  6. Front Panel Requirements
    1. Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
    2. Shall provide an LED for indication of the enclosure temperature exceeding the optimal value
    3. Shall provide green LEDs for input signal presence indication
    4. Shall provide red LEDs for indication of clip warning and protection circuit activation
  7. Rear Panel Requirements
    1. Shall provide four inputs on two 5-pole, 3.5 mm captive screw connectors
    2. Shall provide four outputs on two 4-pole, 5 mm screw-lock captive screw connectors
      1. Shall support 22 AWG to 12 AWG speaker cables
    3. Shall provide remote standby control port on one 2-pole, 3.5 mm captive screw connector that supports standby defeat with the insertion of included 10k ohm resistor
    4. Shall provide recessed, detented potentiometers with laser etched position indicators for attenuation adjustment
    5. Shall provide green LEDs for input signal presence indication
    6. Shall provide red LEDs for indication of clip warning and protection circuit activation
  8. General Requirements
    1. Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure
    2. Shall meet regulatory compliances
      1. Shall meet safety compliances under CE, CEC, CISPR 22 Class B, C-tick, CUL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
      2. Shall be UL listed for plenum airspaces and meet UL 2043 compliance for heat and smoke release, when used with an optional Extron Flexible Conduit Adapter Kit
      3. Shall meet UL 60065, IEC 60065, and BSEN 60065 for safety
      4. Shall meet EMI/EMC compliances under CE, CISPR 22 Class B, C-tick, FCC Class B, ICES, and VCCI Class B
      5. Shall comply with appropriate requirements of EU code of conduct, RoHS, and WEEE
    3. Shall provide three year parts and labor product warranty
    4. Shall provide seven year parts and labor power supply warranty
2. Approved device shall be the Extron XPA U 1004, part number 60-1760-01; no alternates or equals.

XPA U 1004-70V

Provide a compact, energy efficient audio amplifier with low thermal dissipation that shall support four analog inputs and four amplified outputs with 100 watts rms per channel into a 70 volt line.
1. Compact stereo amplifier with 100 watts rms power output per channel into a 70 volt line and Ecofficient Level 3 qualification
  1. Input Requirements
    1. Shall support four, balanced or unbalanced line level signals on two 5-pole, 3.5 mm captive screw connectors
  2. Output Requirements
    1. Shall support four high impedance speaker level signals on two 4-pole, 5 mm screw-lock captive screw connectors
    2. Shall provide 100 watts rms per channel into a 70 volt line measured at 1 kHz with 0.1% THD
    3. Shall provide a signal-to-noise ratio of 100 dB measured from 20 Hz to 20 kHz, unweighted
    4. Shall support a minimum load impedance of 50 ohms
    5. Shall provide a THD+N measurement of 0.1% measured at 1 kHz and 3 dB below clipping
    6. Shall provide damping factor of greater than 100 at 50 ohms
    7. Shall provide a selectable high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
  3. Amplifier Requirements
    1. Shall utilize an efficient Class D amplifier design
    2. Shall provide Class D Ripple Suppression technology
    3. Shall be convection cooled and operate without fans or vents
    4. Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
    5. Shall provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
    6. Shall provide power factor correction technology to remove harmonic content on the AC power line
  4. Power Requirements
    1. Shall draw 69.6 watts during typical (1/8 power) operation
    2. Shall draw 8.8 watts during quiescent operation
    3. Shall provide a low power standby mode
      1. Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
      2. Shall draw less than 1 watt while in standby mode
      3. Shall return to full power status in less than 100 milliseconds upon signal detection while in standby mode
      4. Shall feature an input signal detection threshold of -65 dBu, +/- 3 dB on a balanced input to deactivate standby mode
    4. Shall meet Ecofficient Level 3 requirements
    5. Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
  5. Control Requirements
    1. Shall support remote standby control on one 2-pole, 3.5 mm captive screw connector
  6. Front Panel Requirements
    1. Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
    2. Shall provide an LED for indication of the enclosure temperature exceeding the optimal value
    3. Shall provide green LEDs for input signal presence indication
    4. Shall provide red LEDs for indication of clip warning and protection circuit activation
  7. Rear Panel Requirements
    1. Shall provide four inputs on two 5-pole, 3.5 mm captive screw connectors
    2. Shall provide four outputs on two 4-pole, 5 mm screw-lock captive screw connectors
      1. Shall support 22 AWG to 12 AWG speaker cables
    3. Shall provide remote standby control port on one 2-pole, 3.5 mm captive screw connector that supports standby defeat with the insertion of included 10k ohm resistor
    4. Shall provide recessed, detented potentiometers with laser etched position indicators for attenuation adjustment
    5. Shall provide a 2-pole, 3.5 mm captive screw connector for selecting a high pass filter to roll off frequencies below 80 Hz
    6. Shall provide green LEDs for input signal presence indication
    7. Shall provide red LEDs for indication of clip warning and protection circuit activation
  8. General Requirements
    1. Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure
    2. Shall meet regulatory compliances
      1. Shall meet safety compliances under CE, CEC, CISPR 22 Class B, C-tick, CUL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
      2. Shall be UL listed for plenum airspaces and meet UL 2043 compliance for heat and smoke release, when used with an optional Extron Flexible Conduit Adapter Kit
      3. Shall meet UL 60065, IEC 60065, and BSEN 60065 for safety
      4. Shall meet EMI/EMC compliances under CE, CISPR 22 Class B, C-tick, FCC Class B, ICES, and VCCI Class B
      5. Shall comply with appropriate requirements of EU code of conduct, RoHS, and WEEE
    3. Shall provide three year parts and labor product warranty
    4. Shall provide seven year parts and labor power supply warranty
2. Approved device shall be the Extron XPA U 1004-70V, part number 60-1760-02; no alternates or equals.

XPA U 1004-70V

Provide a compact, energy efficient audio amplifier with low thermal dissipation that shall support four analog inputs and four amplified outputs with 100 watts rms per channel into a 70 volt line.
1. Compact stereo amplifier with 100 watts rms power output per channel into a 70 volt line and Ecofficient Level 3 qualification
  1. Input Requirements
    1. Shall support four, balanced or unbalanced line level signals on two 5-pole, 3.5 mm captive screw connectors
  2. Output Requirements
    1. Shall support four high impedance speaker level signals on two 4-pole, 5 mm screw-lock captive screw connectors
    2. Shall provide 100 watts rms per channel into a 70 volt line measured at 1 kHz with 0.1% THD
    3. Shall provide a signal-to-noise ratio of 100 dB measured from 20 Hz to 20 kHz, unweighted
    4. Shall support a minimum load impedance of 50 ohms
    5. Shall provide a THD+N measurement of 0.1% measured at 1 kHz and 3 dB below clipping
    6. Shall provide damping factor of greater than 100 at 50 ohms
    7. Shall provide a selectable high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
  3. Amplifier Requirements
    1. Shall utilize an efficient Class D amplifier design
    2. Shall provide Class D Ripple Suppression technology
    3. Shall be convection cooled and operate without fans or vents
    4. Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
    5. Shall provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
    6. Shall provide power factor correction technology to remove harmonic content on the AC power line
  4. Power Requirements
    1. Shall draw 69.6 watts during typical (1/8 power) operation
    2. Shall draw 8.8 watts during quiescent operation
    3. Shall provide a low power standby mode
      1. Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
      2. Shall draw less than 1 watt while in standby mode
      3. Shall return to full power status in less than 100 milliseconds upon signal detection while in standby mode
      4. Shall feature an input signal detection threshold of -65 dBu, +/- 3 dB on a balanced input to deactivate standby mode
    4. Shall meet Ecofficient Level 3 requirements
    5. Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
  5. Control Requirements
    1. Shall support remote standby control on one 2-pole, 3.5 mm captive screw connector
  6. Front Panel Requirements
    1. Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
    2. Shall provide an LED for indication of the enclosure temperature exceeding the optimal value
    3. Shall provide green LEDs for input signal presence indication
    4. Shall provide red LEDs for indication of clip warning and protection circuit activation
  7. Rear Panel Requirements
    1. Shall provide four inputs on two 5-pole, 3.5 mm captive screw connectors
    2. Shall provide four outputs on two 4-pole, 5 mm screw-lock captive screw connectors
      1. Shall support 22 AWG to 12 AWG speaker cables
    3. Shall provide remote standby control port on one 2-pole, 3.5 mm captive screw connector that supports standby defeat with the insertion of included 10k ohm resistor
    4. Shall provide recessed, detented potentiometers with laser etched position indicators for attenuation adjustment
    5. Shall provide a 2-pole, 3.5 mm captive screw connector for selecting a high pass filter to roll off frequencies below 80 Hz
    6. Shall provide green LEDs for input signal presence indication
    7. Shall provide red LEDs for indication of clip warning and protection circuit activation
  8. General Requirements
    1. Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure
    2. Shall meet regulatory compliances
      1. Shall meet safety compliances under CE, CEC, CISPR 22 Class B, C-tick, CUL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
      2. Shall be UL listed for plenum airspaces and meet UL 2043 compliance for heat and smoke release, when used with an optional Extron Flexible Conduit Adapter Kit
      3. Shall meet UL 60065, IEC 60065, and BSEN 60065 for safety
      4. Shall meet EMI/EMC compliances under CE, CISPR 22 Class B, C-tick, FCC Class B, ICES, and VCCI Class B
      5. Shall comply with appropriate requirements of EU code of conduct, RoHS, and WEEE
    3. Shall provide three year parts and labor product warranty
    4. Shall provide seven year parts and labor power supply warranty
2. Approved device shall be the Extron XPA U 1004-70V, part number 60-1760-02; no alternates or equals.

XPA U 1004-100V

Provide a compact, energy efficient audio amplifier with low thermal dissipation that shall support four analog inputs and four amplified outputs with 100 watts rms per channel into a 100 volt line.
1. Compact stereo amplifier with 100 watts rms power output per channel into a 100 volt line and Ecofficient Level 3 qualification
  1. Input Requirements
    1. Shall support four, balanced or unbalanced line level signals on two 5-pole, 3.5 mm captive screw connectors
  2. Output Requirements
    1. Shall support four high impedance speaker level signals on two 4-pole, 5 mm screw-lock captive screw connectors
    2. Shall provide 100 watts rms per channel into a 100 volt line measured at 1 kHz with 0.1% THD
    3. Shall provide a signal-to-noise ratio of 100 dB measured from 20 Hz to 20 kHz, unweighted
    4. Shall support a minimum load impedance of 100 ohms
    5. Shall provide a THD+N measurement of 0.1% measured at 1 kHz and 3 dB below clipping
    6. Shall provide damping factor of greater than 100 at 50 ohms
    7. Shall provide a selectable high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
  3. Amplifier Requirements
    1. Shall utilize an efficient Class D amplifier design
    2. Shall provide Class D Ripple Suppression technology
    3. Shall be convection cooled and operate without fans or vents
    4. Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
    5. Shall provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
    6. Shall provide power factor correction technology to remove harmonic content on the AC power line
  4. Power Requirements
    1. Shall draw 69.3 watts during typical (1/8 power) operation
    2. Shall draw 9.0 watts during quiescent operation
    3. Shall provide a low power standby mode
      1. Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
      2. Shall draw less than 1 watt while in standby mode
      3. Shall return to full power status in less than 100 milliseconds upon signal detection while in standby mode
      4. Shall feature an input signal detection threshold of -65 dBu, +/- 3 dB on a balanced input to deactivate standby mode
    4. Shall meet Ecofficient Level 3 requirements
    5. Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
  5. Control Requirements
    1. Shall support remote standby control on one 2-pole, 3.5 mm captive screw connector
  6. Front Panel Requirements
    1. Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
    2. Shall provide an LED for indication of the enclosure temperature exceeding the optimal value
    3. Shall provide green LEDs for input signal presence indication
    4. Shall provide red LEDs for indication of clip warning and protection circuit activation
  7. Rear Panel Requirements
    1. Shall provide four inputs on two 5-pole, 3.5 mm captive screw connectors
    2. Shall provide four outputs on two 4-pole, 5 mm screw-lock captive screw connectors
      1. Shall support 22 AWG to 12 AWG speaker cables
    3. Shall provide remote standby control port on one 2-pole, 3.5 mm captive screw connector that supports standby defeat with the insertion of included 10k ohm resistor
    4. Shall provide recessed, detented potentiometers with laser etched position indicators for attenuation adjustment
    5. Shall provide a 2-pole, 3.5 mm captive screw connector for selecting a high pass filter to roll off frequencies below 80 Hz
    6. Shall provide green LEDs for input signal presence indication
    7. Shall provide red LEDs for indication of clip warning and protection circuit activation
  8. General Requirements
    1. Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure
    2. Shall meet regulatory compliances
      1. Shall meet safety compliances under CE, CEC, CISPR 22 Class B, C-tick, CUL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
      2. Shall be UL listed for plenum airspaces and meet UL 2043 compliance for heat and smoke release, when used with an optional Extron Flexible Conduit Adapter Kit
      3. Shall meet UL 60065, IEC 60065, and BSEN 60065 for safety
      4. Shall meet EMI/EMC compliances under CE, CISPR 22 Class B, C-tick, FCC Class B, ICES, and VCCI Class B
      5. Shall comply with appropriate requirements of EU code of conduct, RoHS, and WEEE
    3. Shall provide three year parts and labor product warranty
    4. Shall provide seven year parts and labor power supply warranty
2. Approved device shall be the Extron XPA U 1004-100V, part number 60-1760-12; no alternates or equals.

XPA U 1004-100V

Provide a compact, energy efficient audio amplifier with low thermal dissipation that shall support four analog inputs and four amplified outputs with 100 watts rms per channel into a 100 volt line.
1. Compact stereo amplifier with 100 watts rms power output per channel into a 100 volt line and Ecofficient Level 3 qualification
  1. Input Requirements
    1. Shall support four, balanced or unbalanced line level signals on two 5-pole, 3.5 mm captive screw connectors
  2. Output Requirements
    1. Shall support four high impedance speaker level signals on two 4-pole, 5 mm screw-lock captive screw connectors
    2. Shall provide 100 watts rms per channel into a 100 volt line measured at 1 kHz with 0.1% THD
    3. Shall provide a signal-to-noise ratio of 100 dB measured from 20 Hz to 20 kHz, unweighted
    4. Shall support a minimum load impedance of 100 ohms
    5. Shall provide a THD+N measurement of 0.1% measured at 1 kHz and 3 dB below clipping
    6. Shall provide damping factor of greater than 100 at 50 ohms
    7. Shall provide a selectable high pass filter for frequencies below 80 Hz with a 12 dB per octave rolloff
  3. Amplifier Requirements
    1. Shall utilize an efficient Class D amplifier design
    2. Shall provide Class D Ripple Suppression technology
    3. Shall be convection cooled and operate without fans or vents
    4. Shall provide an automatic clip limiter to detect onset of clipping by comparing input and output waveforms and automatically reduce gain without audible artifacts to eliminate clipping distortion
    5. Shall provide multiple protection circuits that activate during output shorts, thermal overload, or DC faults
    6. Shall provide power factor correction technology to remove harmonic content on the AC power line
  4. Power Requirements
    1. Shall draw 69.3 watts during typical (1/8 power) operation
    2. Shall draw 9.0 watts during quiescent operation
    3. Shall provide a low power standby mode
      1. Shall enter standby mode after 25 minutes (+/- 5 minutes) of inactivity
      2. Shall draw less than 1 watt while in standby mode
      3. Shall return to full power status in less than 100 milliseconds upon signal detection while in standby mode
      4. Shall feature an input signal detection threshold of -65 dBu, +/- 3 dB on a balanced input to deactivate standby mode
    4. Shall meet Ecofficient Level 3 requirements
    5. Shall provide internal universal power supply with IEC power socket and support for international 100-240 VAC, 50/60 Hz standards
  5. Control Requirements
    1. Shall support remote standby control on one 2-pole, 3.5 mm captive screw connector
  6. Front Panel Requirements
    1. Shall provide an LED for power indication that lights green when the unit is receiving power and active, and lights amber when the unit is in standby mode
    2. Shall provide an LED for indication of the enclosure temperature exceeding the optimal value
    3. Shall provide green LEDs for input signal presence indication
    4. Shall provide red LEDs for indication of clip warning and protection circuit activation
  7. Rear Panel Requirements
    1. Shall provide four inputs on two 5-pole, 3.5 mm captive screw connectors
    2. Shall provide four outputs on two 4-pole, 5 mm screw-lock captive screw connectors
      1. Shall support 22 AWG to 12 AWG speaker cables
    3. Shall provide remote standby control port on one 2-pole, 3.5 mm captive screw connector that supports standby defeat with the insertion of included 10k ohm resistor
    4. Shall provide recessed, detented potentiometers with laser etched position indicators for attenuation adjustment
    5. Shall provide a 2-pole, 3.5 mm captive screw connector for selecting a high pass filter to roll off frequencies below 80 Hz
    6. Shall provide green LEDs for input signal presence indication
    7. Shall provide red LEDs for indication of clip warning and protection circuit activation
  8. General Requirements
    1. Shall be enclosed in a rack-mountable 1U, half rack width metal enclosure
    2. Shall meet regulatory compliances
      1. Shall meet safety compliances under CE, CEC, CISPR 22 Class B, C-tick, CUL, European Code of Conduct, FCC Class B, ICES, RoHS, UL, UL 2043, VCCI Class B
      2. Shall be UL listed for plenum airspaces and meet UL 2043 compliance for heat and smoke release, when used with an optional Extron Flexible Conduit Adapter Kit
      3. Shall meet UL 60065, IEC 60065, and BSEN 60065 for safety
      4. Shall meet EMI/EMC compliances under CE, CISPR 22 Class B, C-tick, FCC Class B, ICES, and VCCI Class B
      5. Shall comply with appropriate requirements of EU code of conduct, RoHS, and WEEE
    3. Shall provide three year parts and labor product warranty
    4. Shall provide seven year parts and labor power supply warranty
2. Approved device shall be the Extron XPA U 1004-100V, part number 60-1760-12; no alternates or equals.
