Workspace Overview

DSP Configurator has a single workspace for the MVC 121 Plus that provides a set of controls for all input and output signal paths inside the main application window. Within this workspace you can configure and monitor all settings related to audio.

See the subsection below for a description of the workspace that is available for the MVC 121 Plus.

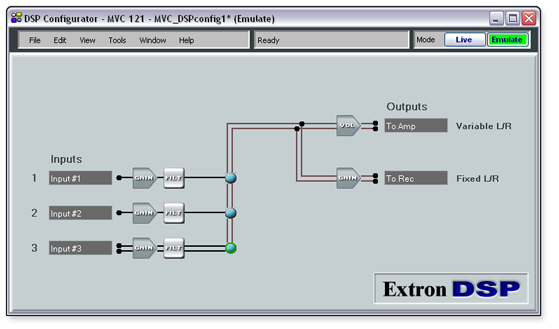

Audio I/O Workspace

In the Audio I/O workspace for the MVC 121 Plus, you can access all audio gain, trim, and volume controls as well as audio DSP processors. See the Mixer Operation section for more information about this workspace. Also, in DSP Configurator, click the icon or press <F1> from any audio dialog box, to open context-sensitive help and view information about the audio controls and processors.

In the following image, click on the elements and menu bar items to view more information.
