DSP Configurator has several workspaces that provide a set of controls for all input and output signal paths inside the main application window. Within these workspaces you can configure and monitor all settings related to audio and video such as audio gain, trim, volume controls, and video format. See the subsections below for a description of the workspaces that are available for the MPX Plus 866 A. |

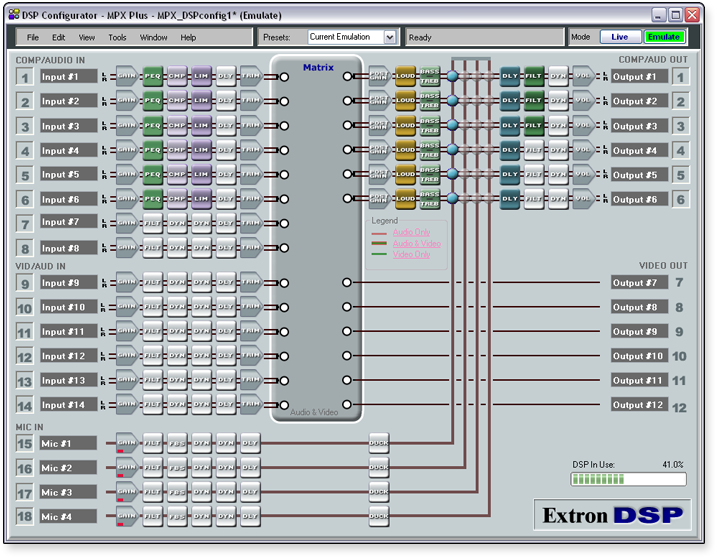

Audio & Video I/O WorkspaceDSP Configurator defaults to the Audio & Video I/O workspace when the application launches. To open this workspace from another workspace, you can select Audio & Video I/O from the View menu or press <F2> on your keyboard. Alternatively, you can click Audio & Video I/O in the Legend section of the workspace you are viewing. In the Audio & Video I/O workspace, you can access the audio and video switching matrix and all audio gain, trim, and volume controls. You can also access all audio DSP signal processors. See the Switcher Matrix Operation section
for more information about this workspace. Also, in DSP Configurator,
click the In the following image, click on the elements and menu bar items to view more information.
|

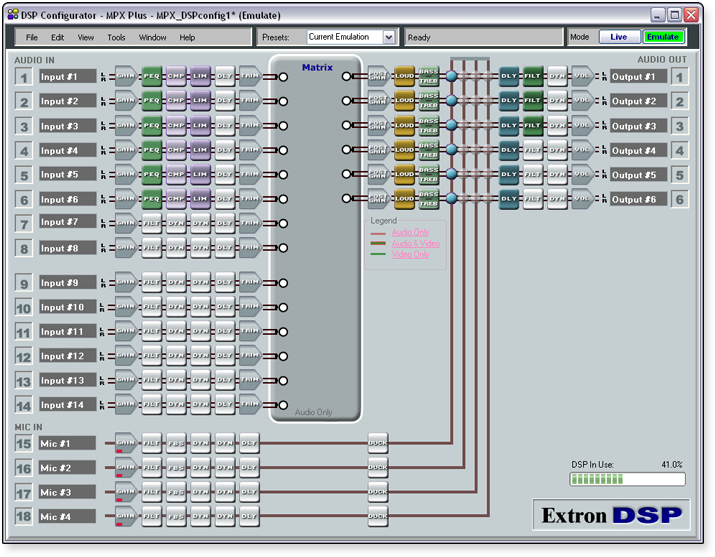

Audio I/O WorkspaceTo open this workspace, you can select Audio I/O from the View menu or press <F3> on your keyboard. Alternatively, you can click Audio I/O in the Legend section of the workspace you are viewing. In the Audio I/O workspace, you can access all audio gain, trim, and volume controls. You can also access all audio DSP signal processors. See the Switcher Matrix Operation section for more information about this workspace. Also, in DSP Configurator, click the ? icon or press <F1> from any audio dialog box, to open context-sensitive help and view information about the audio controls and processor. In the following image, click on the elements and menu bar items to view more information.
|

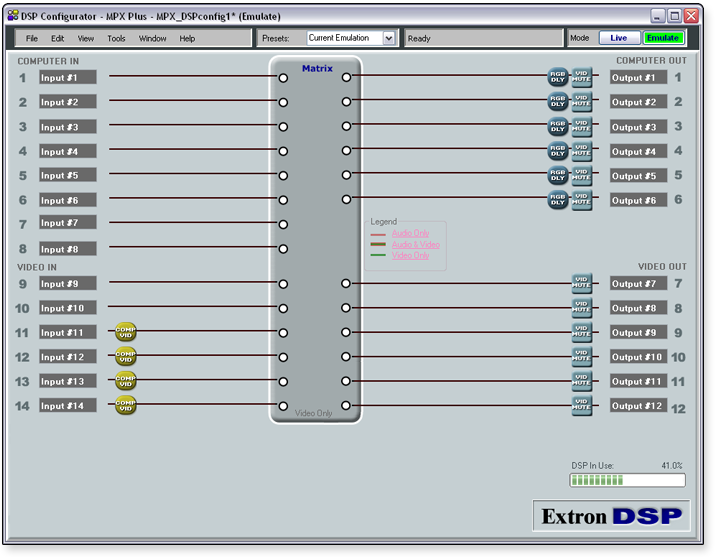

Video I/O WorkspaceTo open this workspace, you can select Video I/O from the View menu or press <F4> on your keyboard. Alternatively, you can click Video I/O in the Legend section of the workspace you are viewing. In the Video I/O workspace, you can access the video switching matrix and low-resolution video format selection. You can also access the RGB delay, and video mutes. See the Switcher Matrix Operation section for more information about this workspace. See the Video Settings section for information about video controls and functions. In the following image, click on the elements and menu bar items to view more information.
|
Console View WorkspaceTo open this workspace, select Console View from the View menu. Alternatively, press <F5> on your keyboard to open the Console View workspace. This workspace provides an overview of all input and output activity. From this view, you can access a meter bridge as well as level and mute (where applicable) controls for all gain points. In the following image, click on the elements and menu bar items for more information.
|
