XPA U 2002 SB

Amplificateur de sortie à deux canaux avec mode bridge
200/400 W par canal

Caractéristiques principales

Puissance de sortie sélectionnable
- Deux canaux de 200 W à 8 Ω ou 4 Ω
- Un canal bridgé de 400 W à 70 V ou 100 V
- Un canal bridgé de 400 W à 8 Ω ou 16 Ω
Répond aux critères du niveau 3 d'Ecofficient^®
Mise en veille automatique économisant de l'énergie
InstaWake™ sort du mode de mise en veille automatique en moins de 100 millisecondes
Refroidi par convection, pas de ventilateur - Possibilité de superposition d'unités sans conserver d'espace pour la ventilation
Toutes les caractéristiques

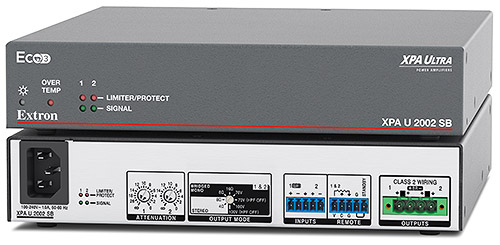

XPA U 2002 SB with Optional Flexible Conduit Adapter Kit (70-228-02)
